Commissioning
6.1 Operating via the handheld programmer
SITRANS LR250 (FOUNDATION FIELDBUS)
Operating Instructions, 01/2014, A5E32221411-AB
43
1. Enter PROGRAM mode

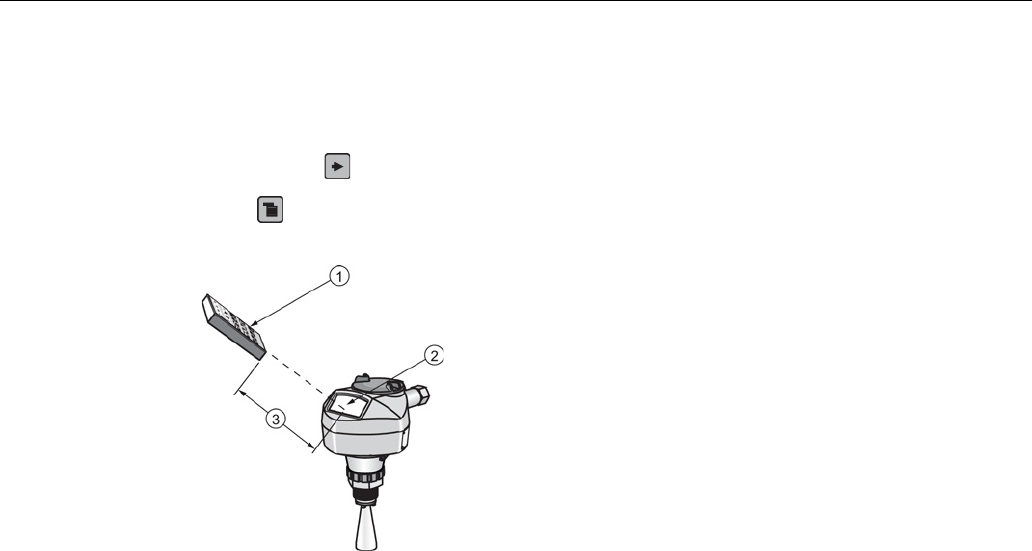

● Point the programmer at the display from a maximum distance of 300 mm (1 ft).
●
RIGHT arrow
activates PROGRAM mode and opens menu level 1.
●
Mode
opens the menu level last displayed in PROGRAM mode within the last 10 minutes,
or menu level 1 if power has been cycled since then.
①
Handheld programmer
②
Display
③
Maximum distance: 300 mm ( 1 ft)
