Commissioning
6.1 Operating via the handheld programmer
SITRANS LR250 (FOUNDATION FIELDBUS)
40 Operating Instructions, 01/2014, A5E32221411-AB

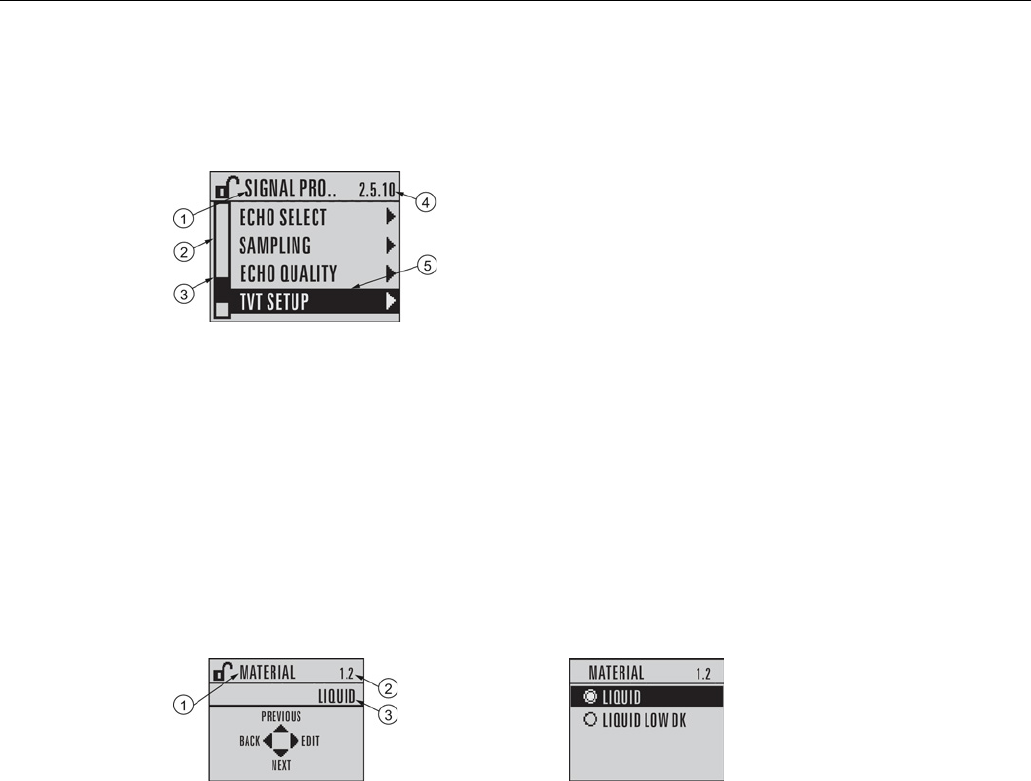

PROGRAM mode display
Navigation view
①
Current menu
④
Current item number
②
Menu bar
⑤
Current item
③
Item band
● A visible menu bar indicates the menu list is too long to display all items.
● A band halfway down the menu bar indicates the current item is halfway down the list.
● The depth and relative position of the item band on the menu bar indicates the length of the
menu list, and approximate position of the current item in the list.
● A deeper band indicates fewer items.
Parameter view
Edit view
①
Parameter name
②
Parameter number
③
Parameter value/selection
