Connecting
5.3 Wiring setups with Foundation Fieldbus for hazardous areas
SITRANS LR250 (FOUNDATION FIELDBUS)
32 Operating Instructions, 01/2014, A5E32221411-AB
5.3.2
Intrinsically safe wiring

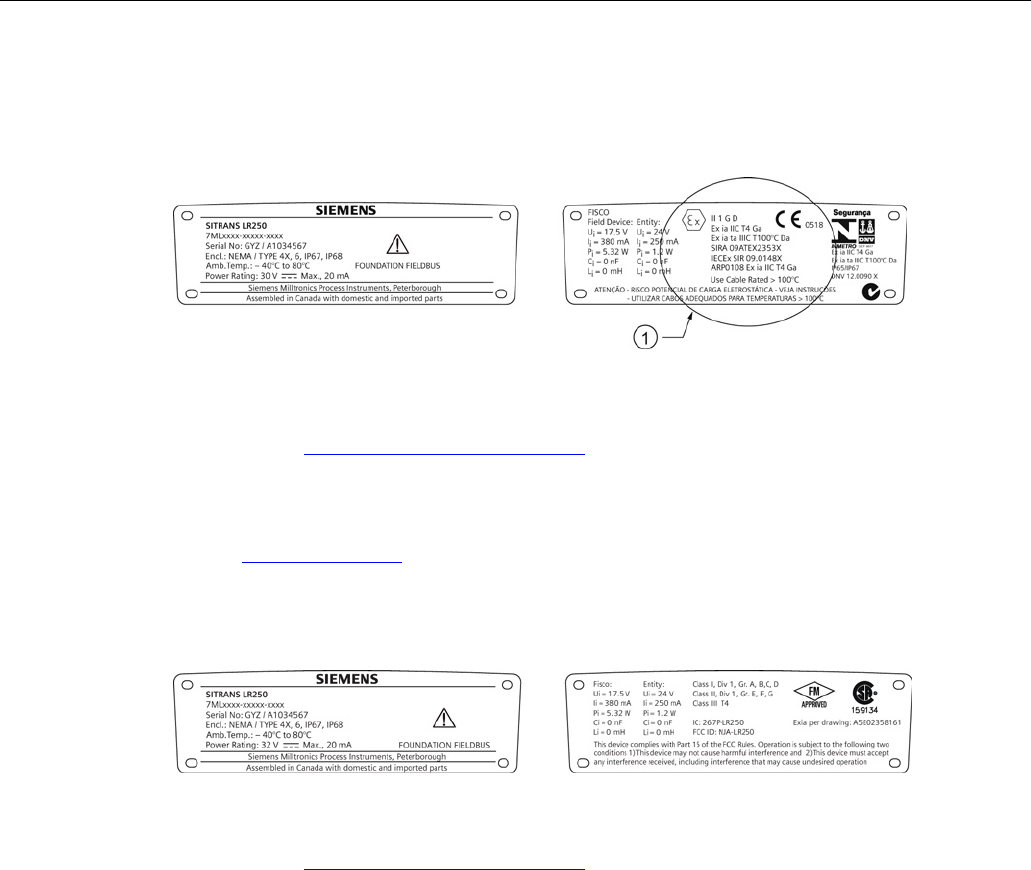

Device nameplate (ATEX/IECEx/C-TICK)
①
ATEX certificates
The ATEX certificates listed on the nameplate can be downloaded from our website:
Product page (http://www.siemens.com/LR250
)
Go to
Support > Approvals / Certificates.
The IECEx certificate listed on the nameplate can be viewed on the IECEx website. Go to:
IECEx (http://iecex.iec.ch/
)
Click on
Certified Equipment
and enter the certificate number
IECEx SIR 09.0148X.
Device nameplate (FM/CSA)
The FM/CSA Intrinsically Safe connection drawing number A5E02358161 can be downloaded
from our website at:
Product page (http://www.siemens.com/LR250
)
Go to
Support > Installation Drawings > Level Measurement > SITRANS LR250
.
● For wiring requirements: follow local regulations.
● Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X / type 4X
/ NEMA 6, IP67, IP68 locations.
● Refer to Instructions specific to hazardous area installations (Page 36).
