Connecting

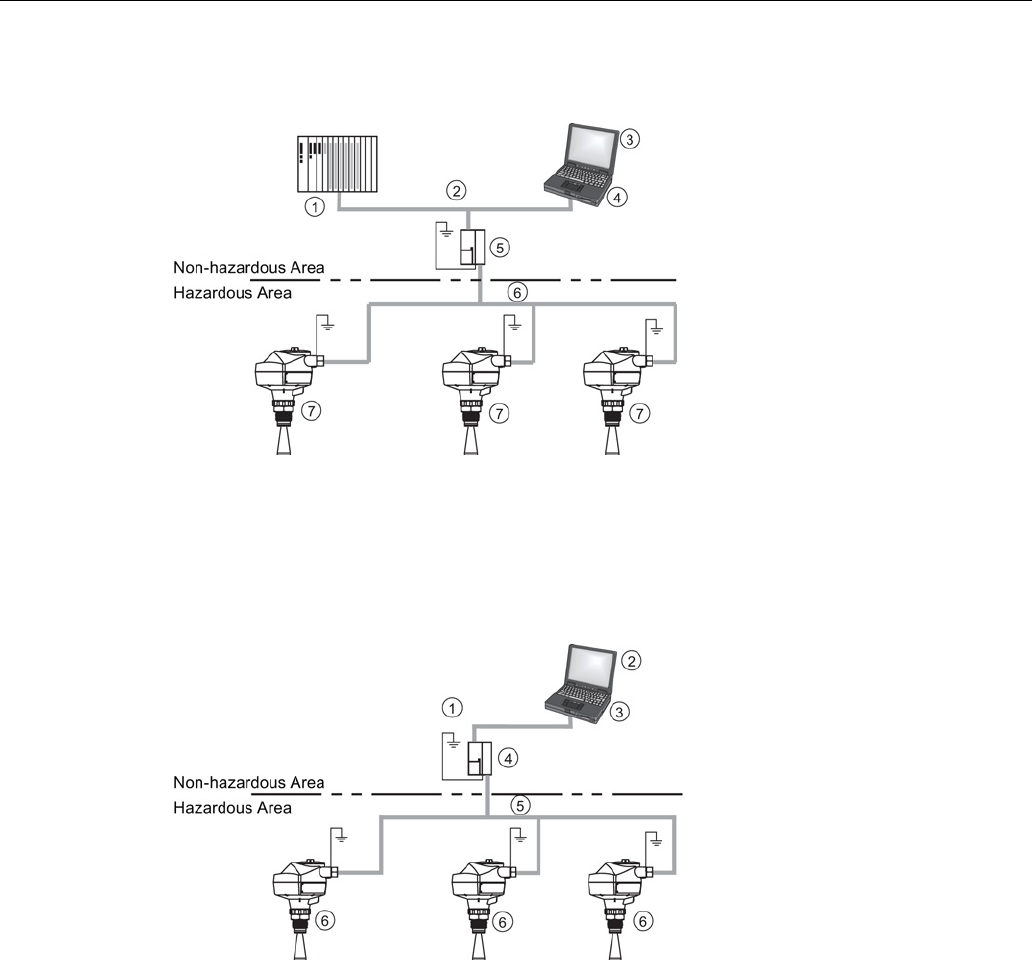

5.3 Wiring setups with Foundation Fieldbus for hazardous areas
SITRANS LR250 (FOUNDATION FIELDBUS)
Operating Instructions, 01/2014, A5E32221411-AB
31
Configuration via Linking Device
①
Controller
⑤
EEx ia type HSE/H1 Linking Device
②
FF (HSE)
⑥
FF (H1)
③
Configurator software
⑦
LR250 (FF)
④
PC/laptop
Configuration via PCI/PCMCIA Card
①
PCI/PCMCIA bus
④
EEx ia type H1 Interface
②
Configurator software
⑤
FF (H1)
③
PC/laptop
⑥
LR250 FF
