Connecting
5.3 Wiring setups with Foundation Fieldbus for hazardous areas
SITRANS LR250 (FOUNDATION FIELDBUS)
30 Operating Instructions, 01/2014, A5E32221411-AB
5.3
Wiring setups with Foundation Fieldbus for hazardous areas
There are three wiring options for hazardous area installations:
● Intrinsically safe wiring (Page 32)
● Non-sparking wiring (Page 35)
● Non-incendive wiring (US/Canada only) (Page 35)
In all cases, check the nameplate on your instrument, confirm the approval rating, and perform
installation and wiring according to your local safety codes.
5.3.1
Configuration with Foundation Fieldbus for hazardous areas

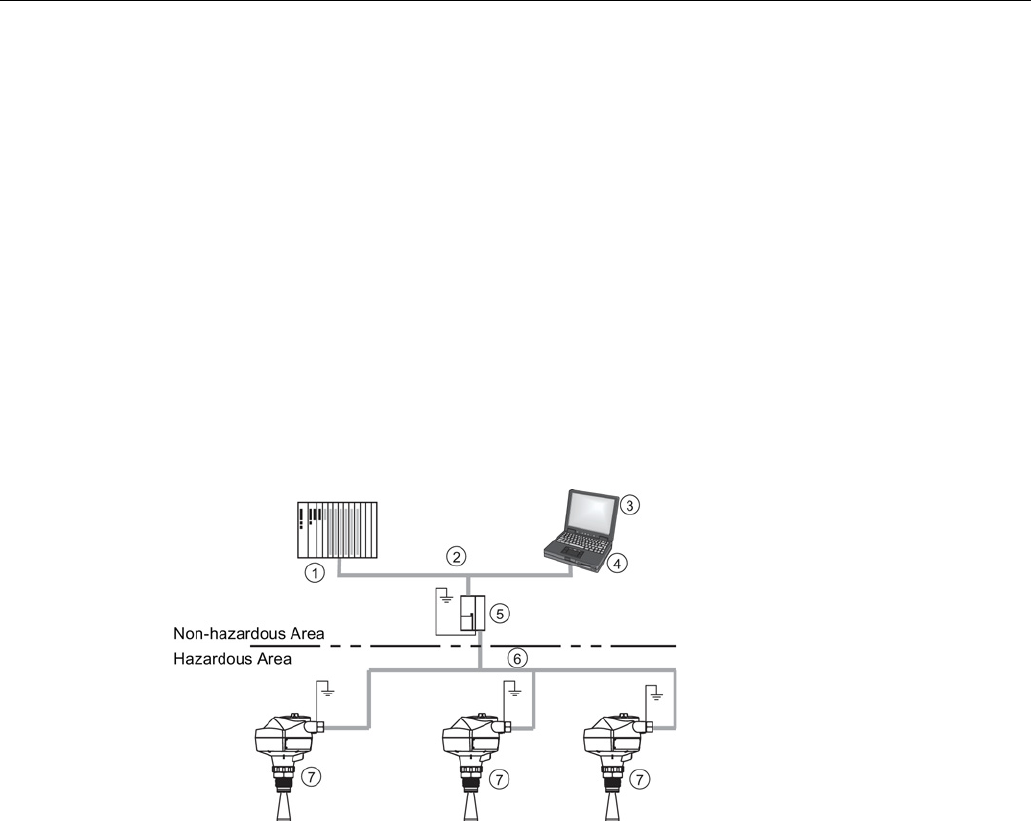

Configuration via Gateway
①
Controller
⑤
EEx ia type HSE/H1
②
FF (HSE)
⑥
FF (H1)
③
Configurator software
⑦
LR250 FF
④
PC/laptop
