Connecting
5.2 Connecting SITRANS LR250
SITRANS LR250 (FOUNDATION FIELDBUS)
28 Operating Instructions, 01/2014, A5E32221411-AB
5.2.1

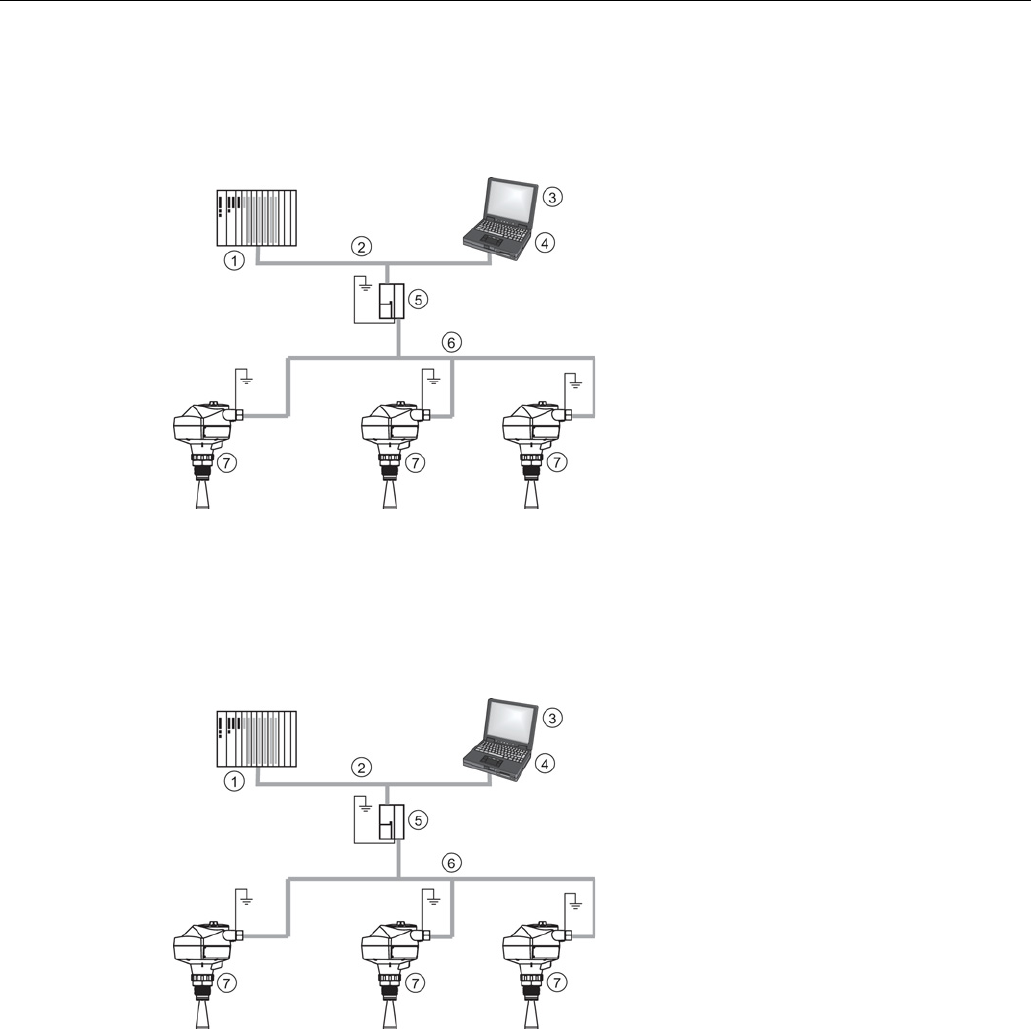

Basic Configuration with Foundation Fieldbus (H1)
Configuration via Gateway
①
Controller
⑤
Rosemount 3420 HSE/H1Gateway
②
FF (HSE)
⑥
FF (H1)
③
Configurator software
⑦
LR250 FF
④
PC/laptop
Configuration via Linking Device
①
Controller
⑤
HSE/H1 Linking Device
②
FF (HSE)
⑥
FF (H1)
③
Configurator software
⑦
LR250 FF
④
PC/laptop
