Installing/mounting
4.4 Flange bolting, Flanged encapsulated antenna only
SITRANS LR250 (FOUNDATION FIELDBUS)
24 Operating Instructions, 01/2014, A5E32221411-AB
Recommendations for flange bolting:

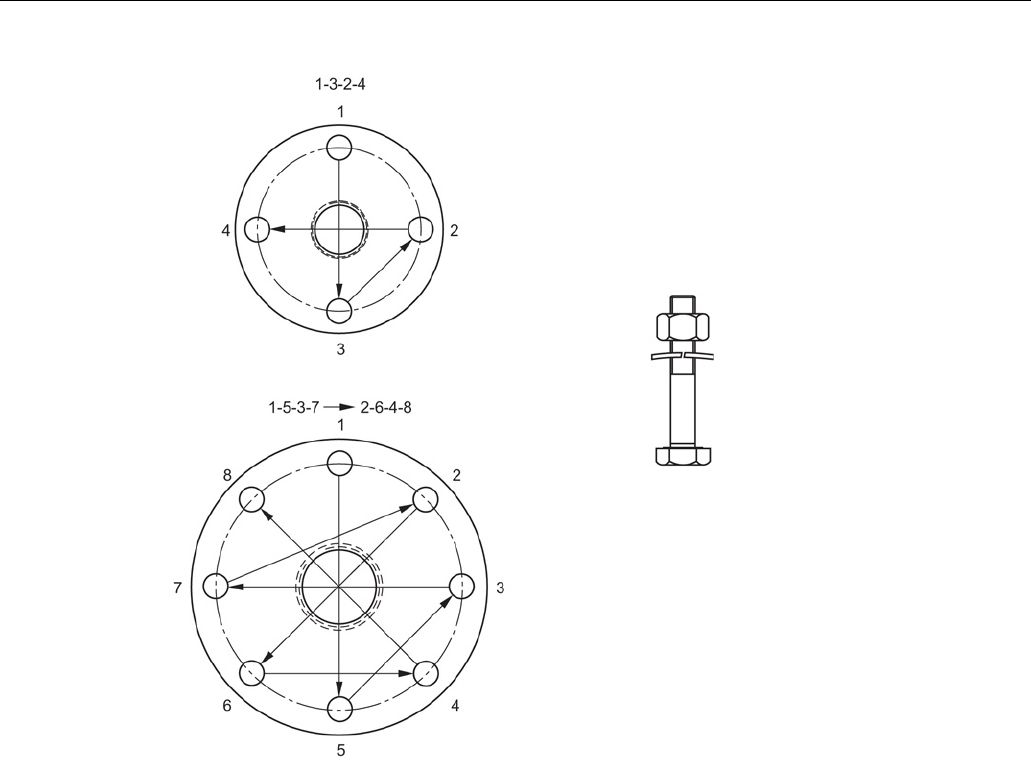

● Use cross-pattern sequence as shown
● Check uniformity of the flange gap
● Apply adjustments by selective tightening if required
● Torque incrementally until desired value is reached
● Check/re-torque after 4 to 6 hours
● Check bolts periodically, re-torque as required
● Use new lens, O-ring and spring washers after removal from installation.
For instructions on replacing the lens, see Part replacement (Page 185).
