Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
108 Operating Instructions, 01/2014, A5E32221411-AB
Note
Acknowledging a maintenance remi
nder from the device (see
Acknowledge
(4.2.9.)
,
(4.3.9.),
(4.4.9.)
,
(4.5.9.)

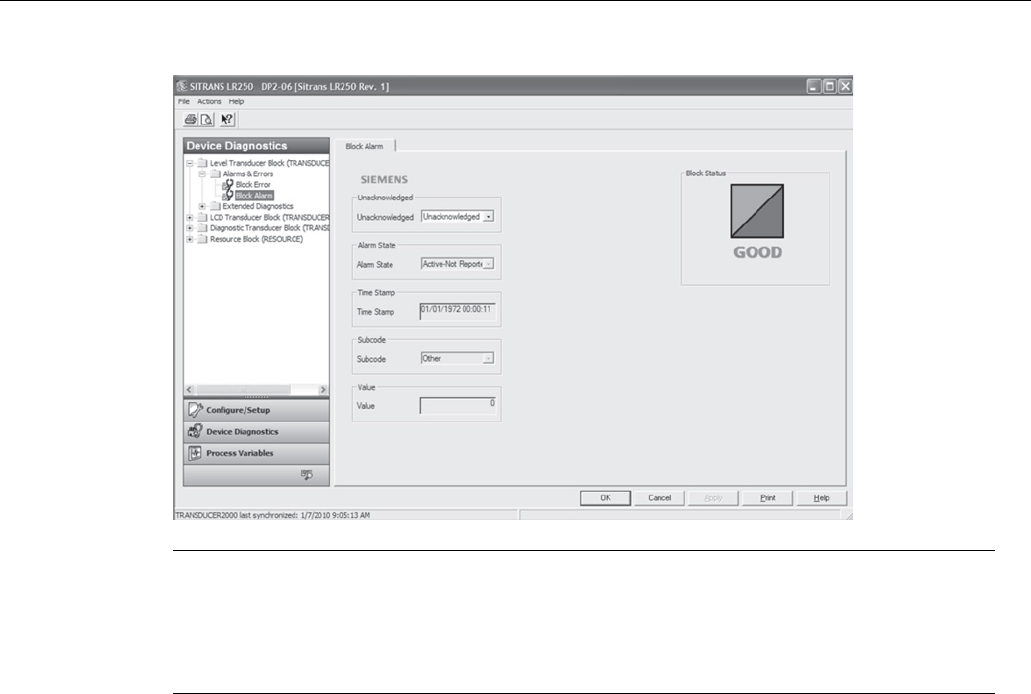

will not set the Block Alarm to Acknowledged in AMS. The maintenance
alarm will cause an FF block alert, and the block alert can only be acknowledged via a
remote host such as NI
-FBUS Configurator or AMS Device Manager (as in step 3 above).
