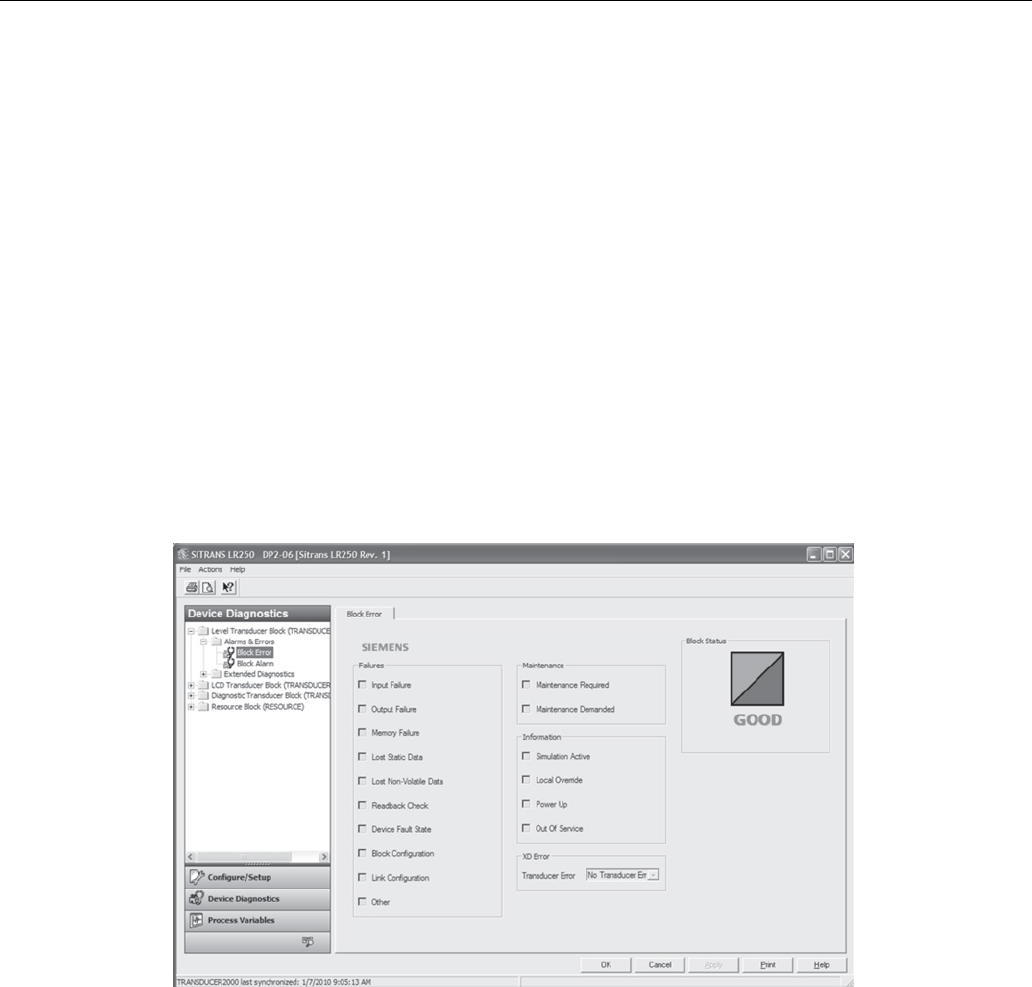

Click on
Block Alarm
to open the dialog window to read the following:
Unacknowledged
● Unacknowledged
Alarm State
● Alarm State
Time Stamp
● Time Stamp
Subcode
● Subcode
Value
● Value
1. From the
Block Error
tab, check the
Maintenance
window to display the level of maintenance
alarm that is active.
2. From the
Block Alarm
tab, check the
Alarm State
window to display the level of maintenance
alarm that has been acknowledged.
3. From the
Block Alarm
tab, in the
Unacknowledged
window, select
Acknowledged
to
acknowledge an alert.
