Remote operation
7.1 Operating via AMS Device Manager
SITRANS LR250 (FOUNDATION FIELDBUS)
Operating Instructions, 01/2014, A5E32221411-AB
105
7.1.12.6
Security (RESOURCE)

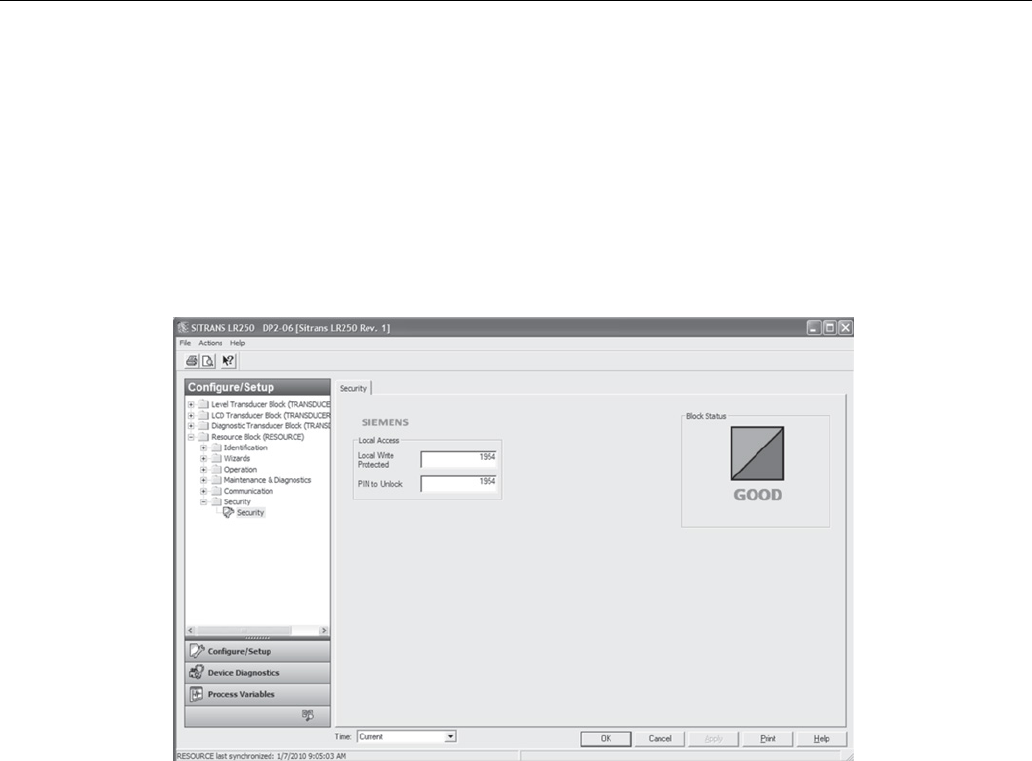

Navigate to
Configure/Setup > RESOURCE > Security
to access:
Local Access
● Local Write Protected [see
Write Protection (6.2.1.)
]
● PIN to Unlock [see
PIN to Unlock (6.2.2.)
]
See also Password Protection (Page 115).
