Technical information

IM-P343-29 CH Issue 5 41
Installed orientation At-rest position Control action
Manual Selection
of required % travel
(TRAVL)
Automatic determintation
Spring action only affects
the rest or fail-safe position
Manual Selection of required
Control Action
(CTRLA)






 



 



 



 



 



 



 



 

(TRAVL)
0 - 100%
(TRAVL)
100 - 0%
0%
100%
0%
100%

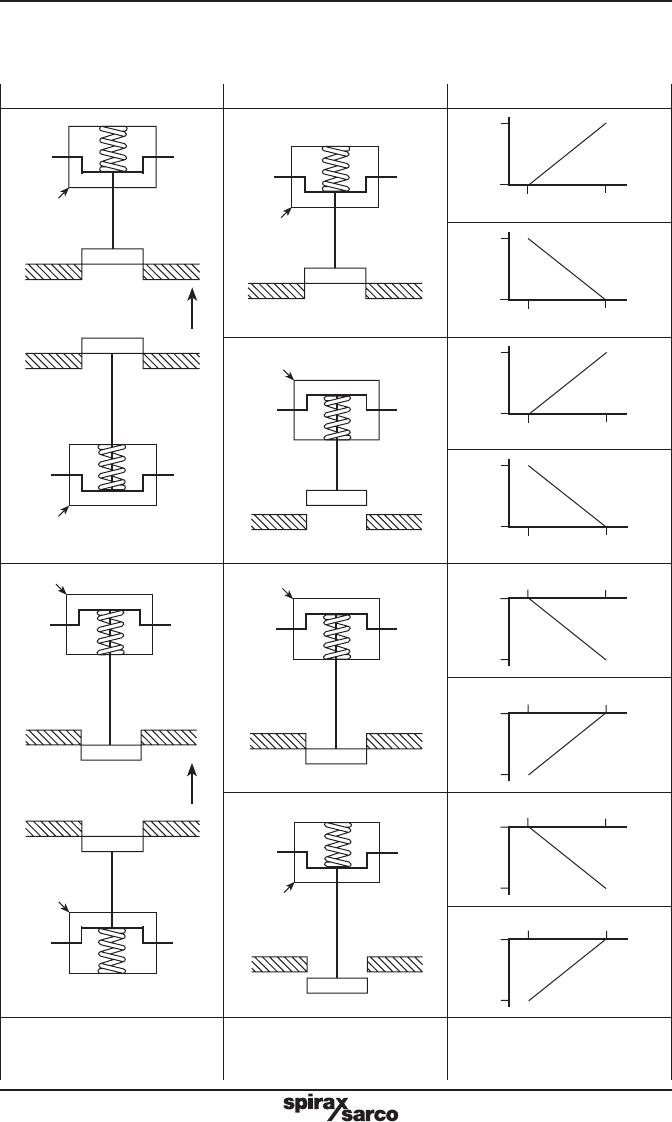

Fig. 42 CTRL Control Action dIRCT or REV setting guidance
