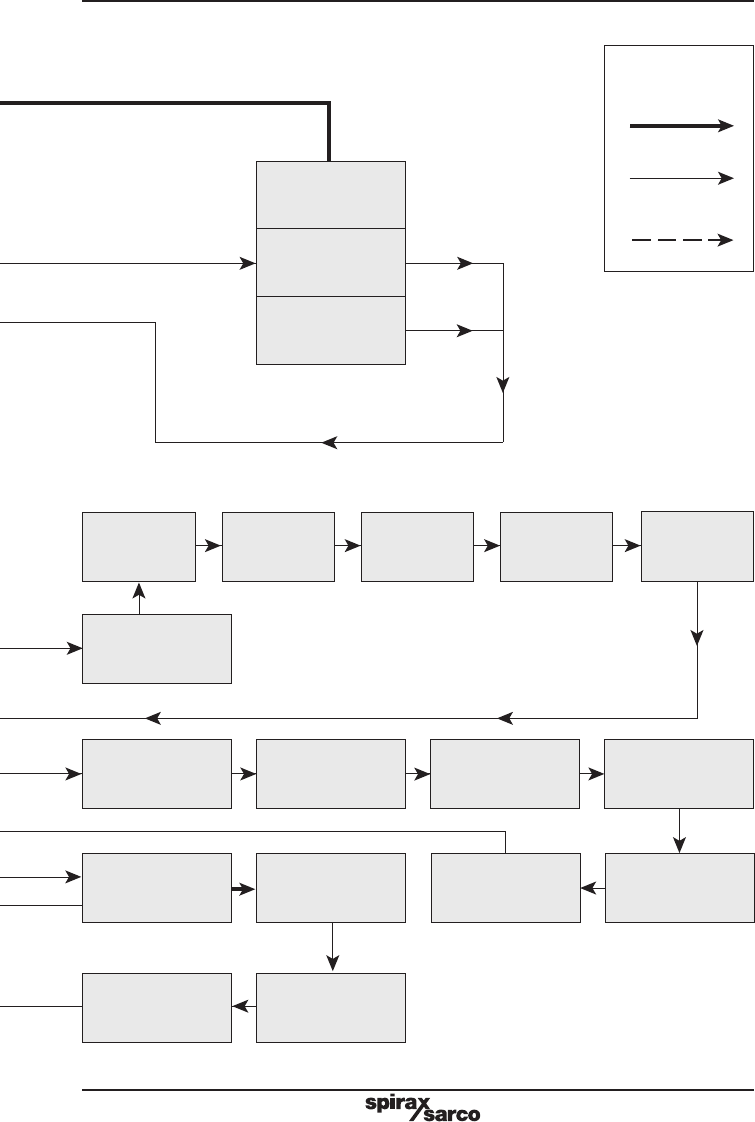

Clear stored
values
(RESET)
Recall stored
values
(RETRN)
Retain temporary
values
(RTAIN)
AUTO
OPERATION
(mA Input signal)
Shut-off maximum
(S-MAX)
Characterisation
(LIN / FAST /
EQUAL)
Time to open
(T-UP)
Time to close
(T-dWN)
Travel switch 2 (NC)
(TS2)
Travel switch 1 (NO)
(TS1)
Stem travel
(STRVL)
Key
3 seconds enter
Enter
Auto return
Run time
(RTIME)
(RETAIN)
(RESET)
† Only if MIN-T / MAX-T not 0 / 100%
Maximum
travel
(MAX-T)
Minimum
range
(MIN-R)
Maximum
range
(MAX-R)
Displayed %
travel
(DTRVL)†
Minimum
travel
(MIN-T)
Control action
(CTRLA)
