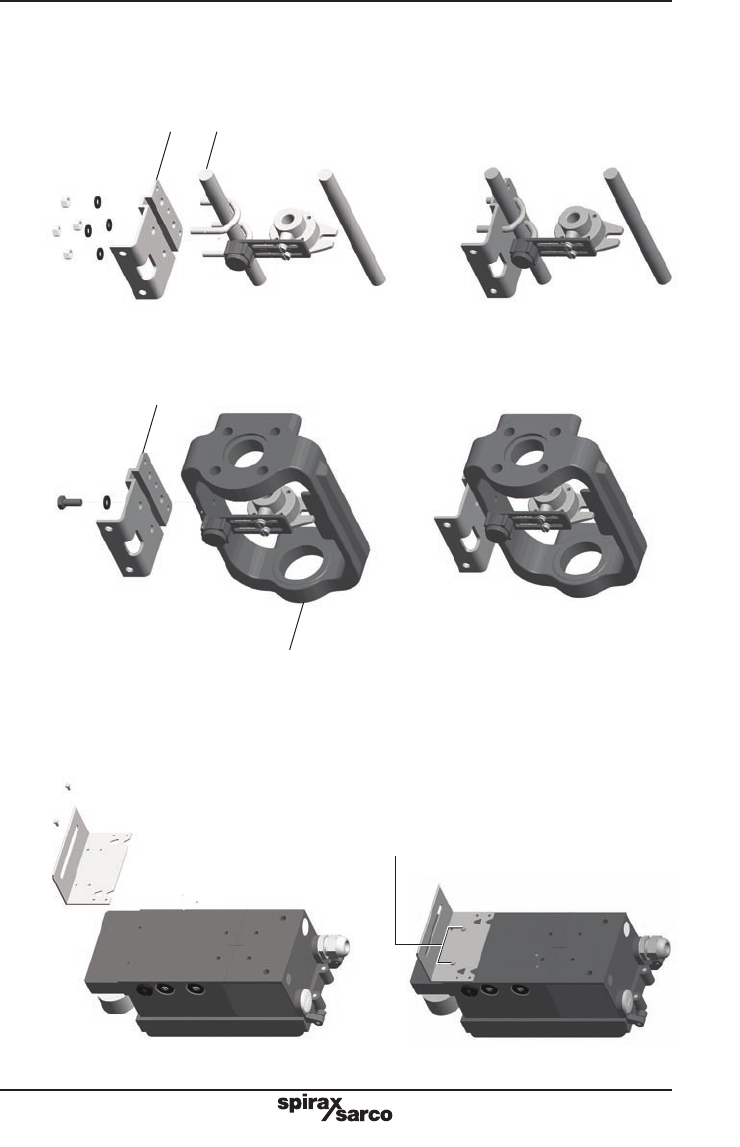

5.2.4 Loosely attach the positioner mounting plate to the actuator as shown in the following
pictures: for the pillar actuator (Figure 9), and for the yoke actuator (Figure 10).
Fig. 9 Pillar actuator assembly
Pillar actuatorMounting plate
Fig.10 Yoke actuator assembly
Yoke actuator
Mounting plate
5.2.5 Locate the protection plate onto the back of the SP200 positioner housing and fix in
place (Figure 11).
Protection plate
Fig. 11
Assembled
Assembled
Assembled
