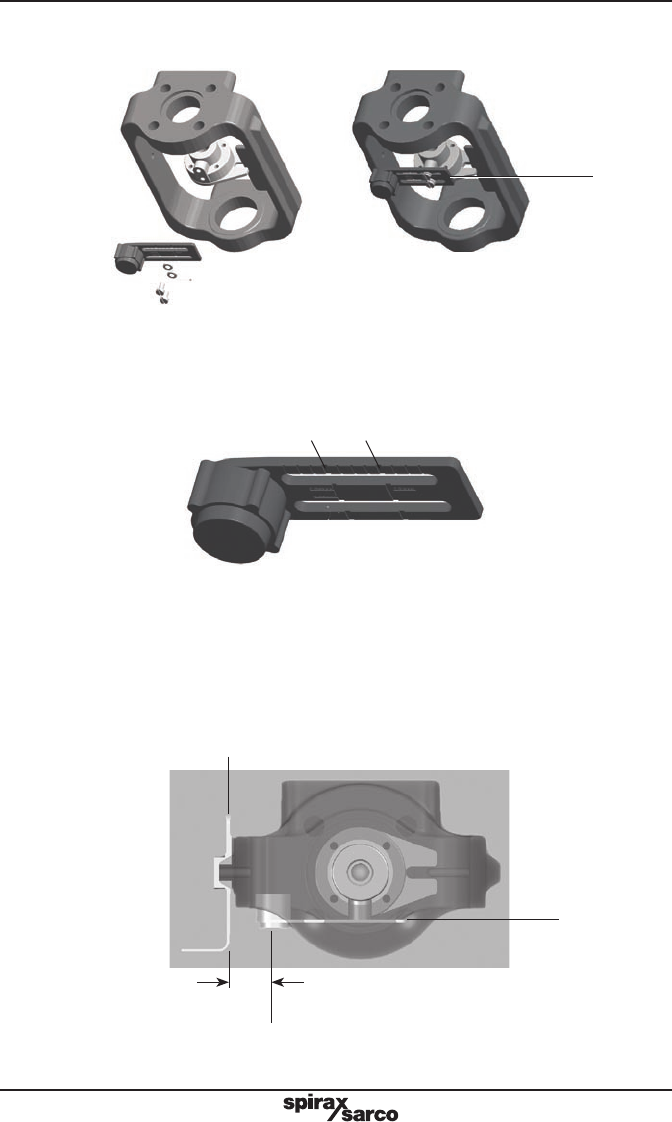

5.2.2 Slide the bracket (2) to the left or to the right (Figure 6) till the correct position is
achieved. If you’re using a Spirax Sarco actuator the correct position is impressed
on the magnet bracket (Figure 7).
5.2.3 If you’re not using a Spirax Sarco actuator, slide the bracket till the distance 'A'
between the center of the magnet and the inner side of the mounting plate is 25 mm
(Figure 8).
Fig. 8
A
Distance between the mounting plate and magnet
Fig. 7 Bracket markings
Fig. 6
Assembled
2
Mounting plate
Bracket
Center
of the
magnet
PN1000PN9000
