Datasheet

Product Specification

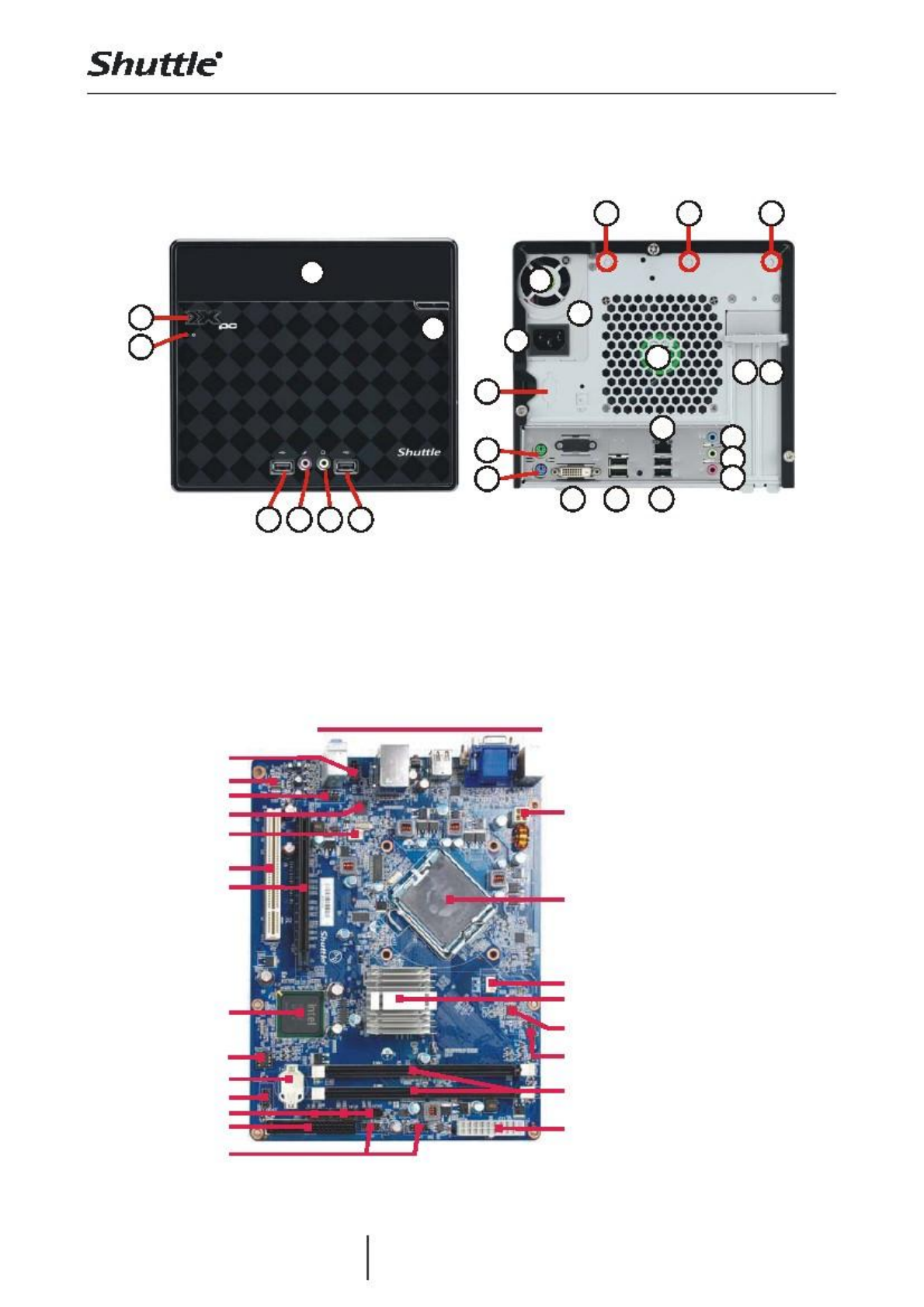

Shuttle XPC Barebone SG41J1 Black – Connectors
Front View
Rear View
E
1
2
3
4
F
G
H
5675
(1)
(2)
(3)
(4)
(5)
(6)
(7)
5.25" bay
Power button
Power LED
DVD Eject button
2x USB ports
Microphone input
Headphone output
E
E
B
C
A
D
K
I
J
J
OP
L
M
N
(A) Power supply consist of
(B) PSU cooling fan and
(C) AC power connector
(D) Chassis cooling fan
(E) Wireless LAN perforation
(F) Serial port perforation
(G) PS/2 mouse port
(H) PS/2 keyboard port
Back panel connectors
(I) DVI-D video port (digital)
(J) 4x USB ports
(K) RJ45 LAN port
(L) Audio Line-in port
(M) Audio Line-out port
(N) Microphone-in port
(O) PCI-Express X16 slot
(P) PCI slot
Audio Aux-in
Audio CODEC
Front Audio Connenctor
LAN chip
System Fan connector
PCI Slot
PCI Express x16 Slot
Mainboard
ATX12V power connector
Socket 775
(LGA775)
Intel ICH7
South bridge
BIOS EEPROM
Battery
Front panel connector
3x SATA ports
IDE port
USB headers
Fan connector
Intel G41 chipset
(North bridge)
ITE 8718F chipset
LPC header
2 DDR2 DIMM sockets
(240 pins)
ATX power connector
