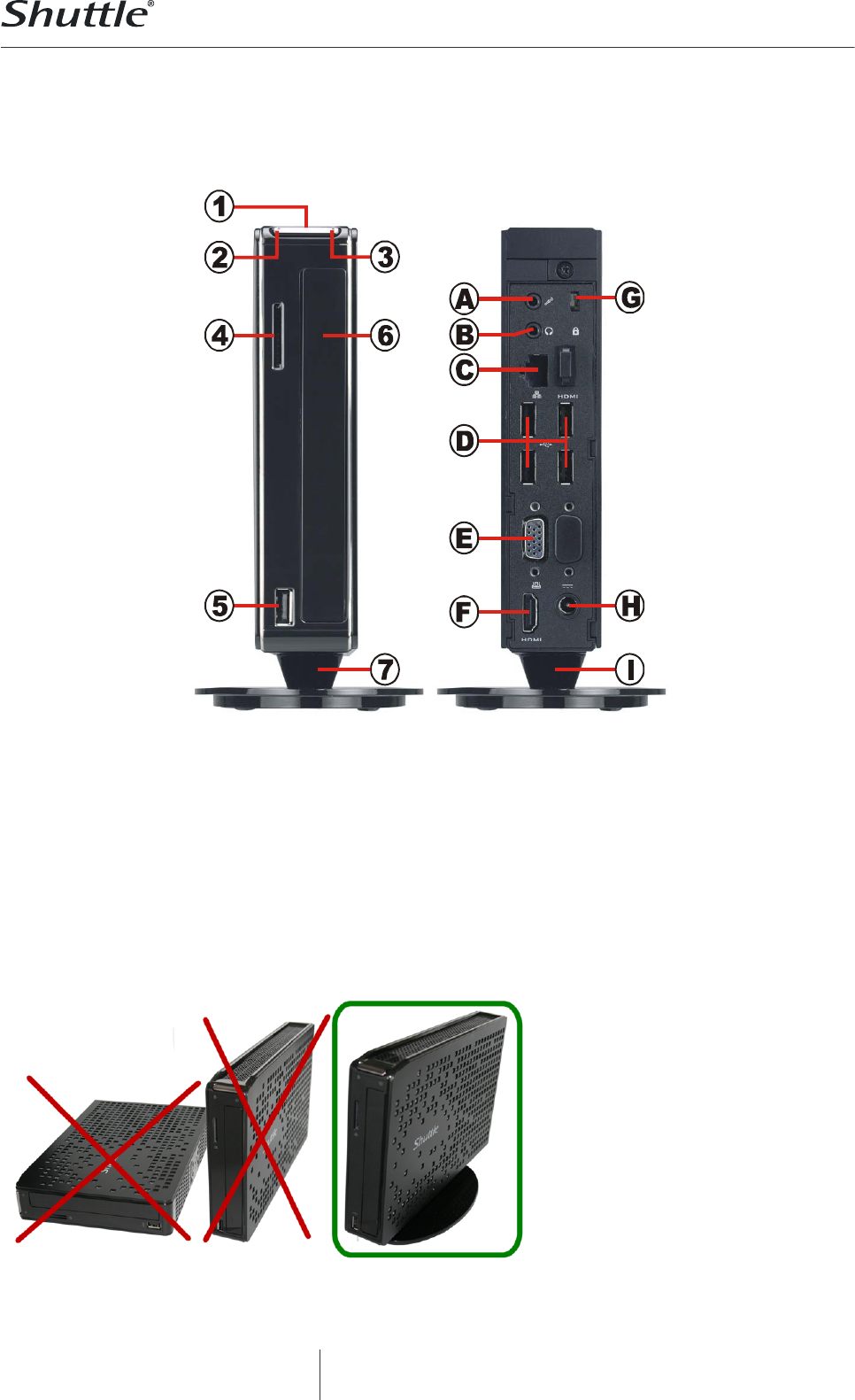

Shuttle Barebone XS35GTA V3 – Connectors
Front Panel Back Panel
1 Power button A Microphone input
2 Power LED B Head phone output (Line out)
3 Hard disk LED C Gigabit LAN connector (RJ45)
4 4-in-1 card reader D 4x USB connectors
5 USB connector E D-Sub/VGA connector
6 Bay for the optical slimline drive *) F HDMI connector
7 Vertical stand G
Hole for the Kensington-Lock
H
Connector for the power adapter
I Vertical stand
*) Note: The optical drive is not included.
Warning:
Please make sure the system is always
placed upright using either its stand or
the optional VESA mount. Ventilation
holes must not be blocked to ensure
sufficient cooling.
