Product guide

6

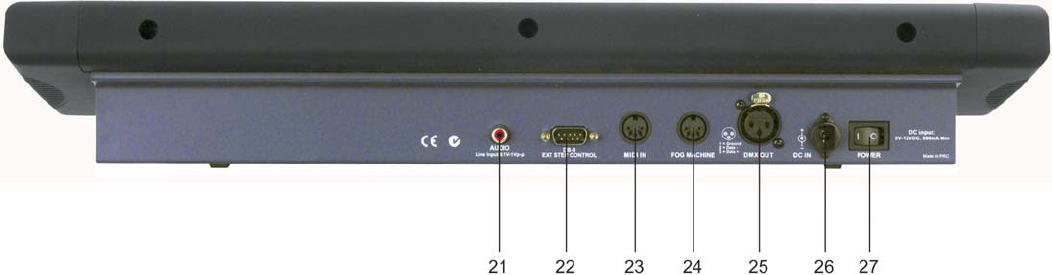

Backside
Fig. 2
21) AUDIO LINE INPUT
0.1V~1Vp-p
22) DB-9 Connector
To connect an external step controller
23) MIDI IN
Used to receive MIDI data.
24) Fog Machine Output
To send the signal to a fog machine.
25) DMX OUT
This connector sends your DMX value to the DMX scanner or DMX pack
26) DC INPUT
DC 9 ~15V, 500mA min.
27) POWER ON / OFF
Used to switch on / off the power.
Installation
Remove all packing materials from the Scanmaster 2 MKII. Check that all foam and plastic padding is
removed. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
The Scanmaster 2 MKII allows you to program 12 fixtures with 16 DMX channels each; 30 banks of 8
programmable scenes, 12 chases of 99 steps using 8 channel sliders, a joystick and other buttons. With the
ease of the joystick, you can easily and more accurately control the movement of a fixture. To further dazzle
the audience, this unit allows you to assign DMX channels. In addition 2 units can set up communication, so
that they send or receive a complete file dump.
