The LED filter

Wedevelopedan“LEDfilter”applicationtosourcetheLEDslogicaladdress.ThiswayanAnimation
curtaincanbeconfiguredmanuallybyturningturnoff/onaLED,plugoranentirecurtain(inamultiple
curtainsetup).
Thisisinterestingwhenpartofacurtainiscovered(e.g.byaprojectionscreen)andtheLEDsbehindthe
objectshouldbeturnedoff.
Tostartthisapplication,theAnimationsystemshouldbeset‐up(controllersandPClinked)andthe
designerprogrammeneedstoberunning.
StarttheShowLEDDesignerandcreateadesignerfileofthecurtainbyclickingthedesignerbutton.
Followtheinstructionsandsavethedesignerfile.(seeTheShowLEDDesigner)

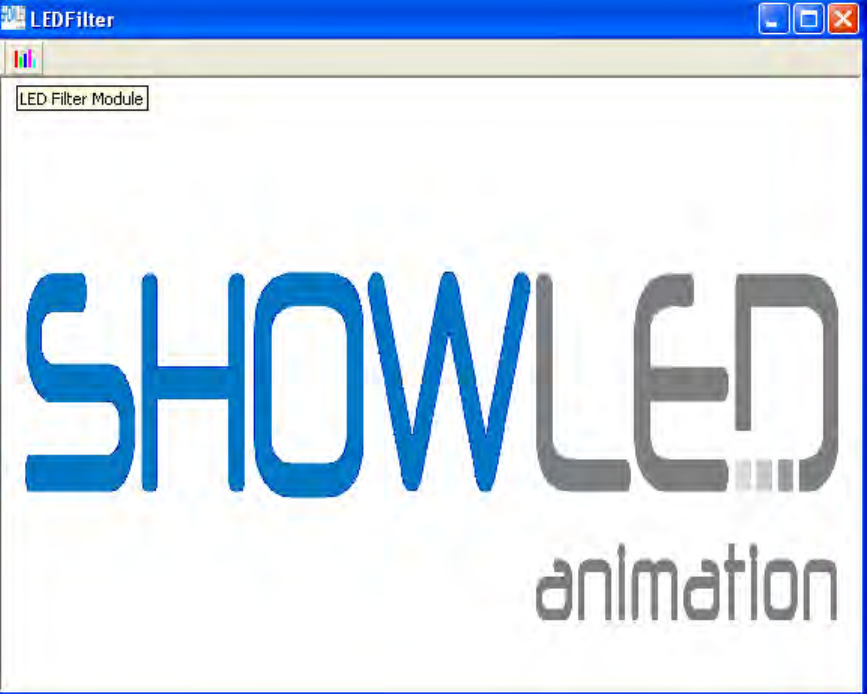

ClickontheLEDFilterbuttonandselectthedesignerfileyouhavecreatedandsavedearlier.The
applicationisnowrunning.
NOTE.Ifyoudon’thavetheLEDfilterprogramme,pleasecontactusforthelatestsoftwareversions.


