Resizingtheprojectionarea.

TheShowLEDAnimationprojector has afunctionthatallowstheusertoresizetheprojectionareaonthe
Animationstarcloth.Thiswaytheprojectedimagecanremainfullyvisiblewhenpartofthecurtainis
hiddenbyastage,othercurtains,trussing,…
FirstofallyouneedtomaketheconfigurationwiththeShowLEDAnimationdesignersoftwareandload
the.slcfileintheAnimationprojectorsoftware.
Theresizeprojectionareabutton(twosquares)islocatedintheShowLEDprojectorontherightsideof
theplaybutton.

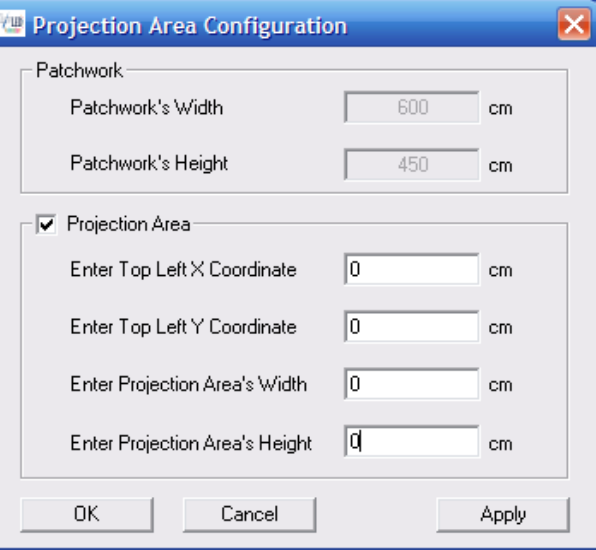

Whenyouclickonthisbuttonyouwillseefollowingwindowwhereyoucanmaketheprojectionarea
configuration.



Inthetopsquareofthewindowyouwillseethedimensionofthepatchworkasrecognisedbythe
ShowLEDAnimationdesignersoftware.Youcanalterthesizeoftheprojectionareabyfillinginthenew
(andsmaller)dimensionsintheprojectionarea’swidthandheightboxes.

