Chapter 2: Using the software
ShowLEDitor software.


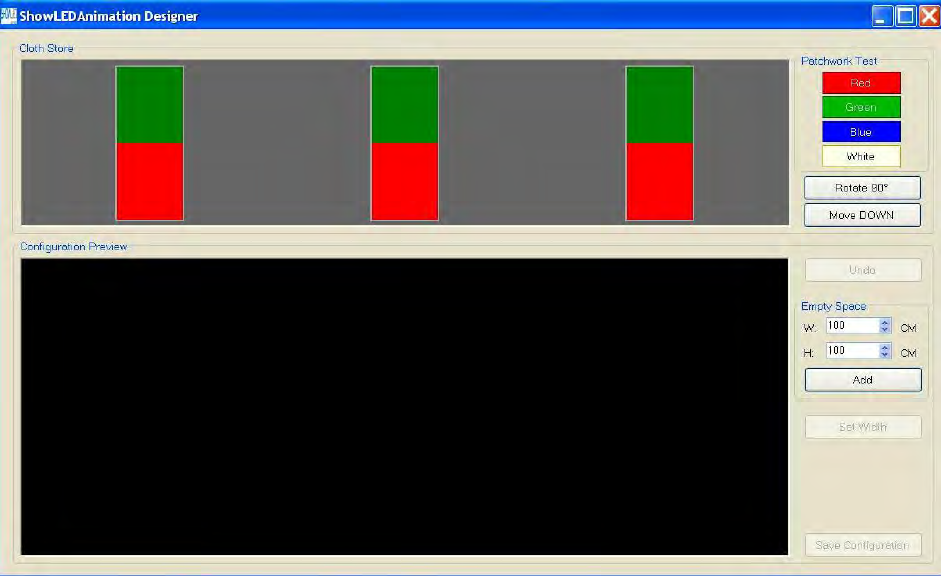

StartthefileC:\programfiles\showled\showleditor.exeandthisiswhatyou’llsee.


Inthisexample3x4mx9mShowLEDAnimationstarclothsareconnectedtothePC.Thesoftware
automaticallydetectsthesebackdropsandtheyarelistedinthe“Clothstore”view.
ThestarclothsthatareconnectedtothePCwilllightupandwillbedevidedinredandgreensquares.
Youcaneasilyselectthecurtainsbyclickingontheminthe“clothstore”view.Theselectedstarcloth
willhaveablueoutlinearoundthegre enandred squares.
Youcannowrotatetheselectedclothsinthe“clothstore”bypressingthe“Rotate90”key.
Theaimistorotatetheclothuntiltheredandgreensquarearedividedinthesamewayasonthe
physicalbackdrop.

