STEP 3 - RUNWAY INSTALLATION
3.1 Set the runways on top of the columns. Attach runways to columns using four (4) 1/2-13, 1.5” long bolts,
hex nuts and lockwashers per column.
3.2 Level runways and make sure that they are parallel within +/- 1/16”. Use shims under whole bracket if
necessary.

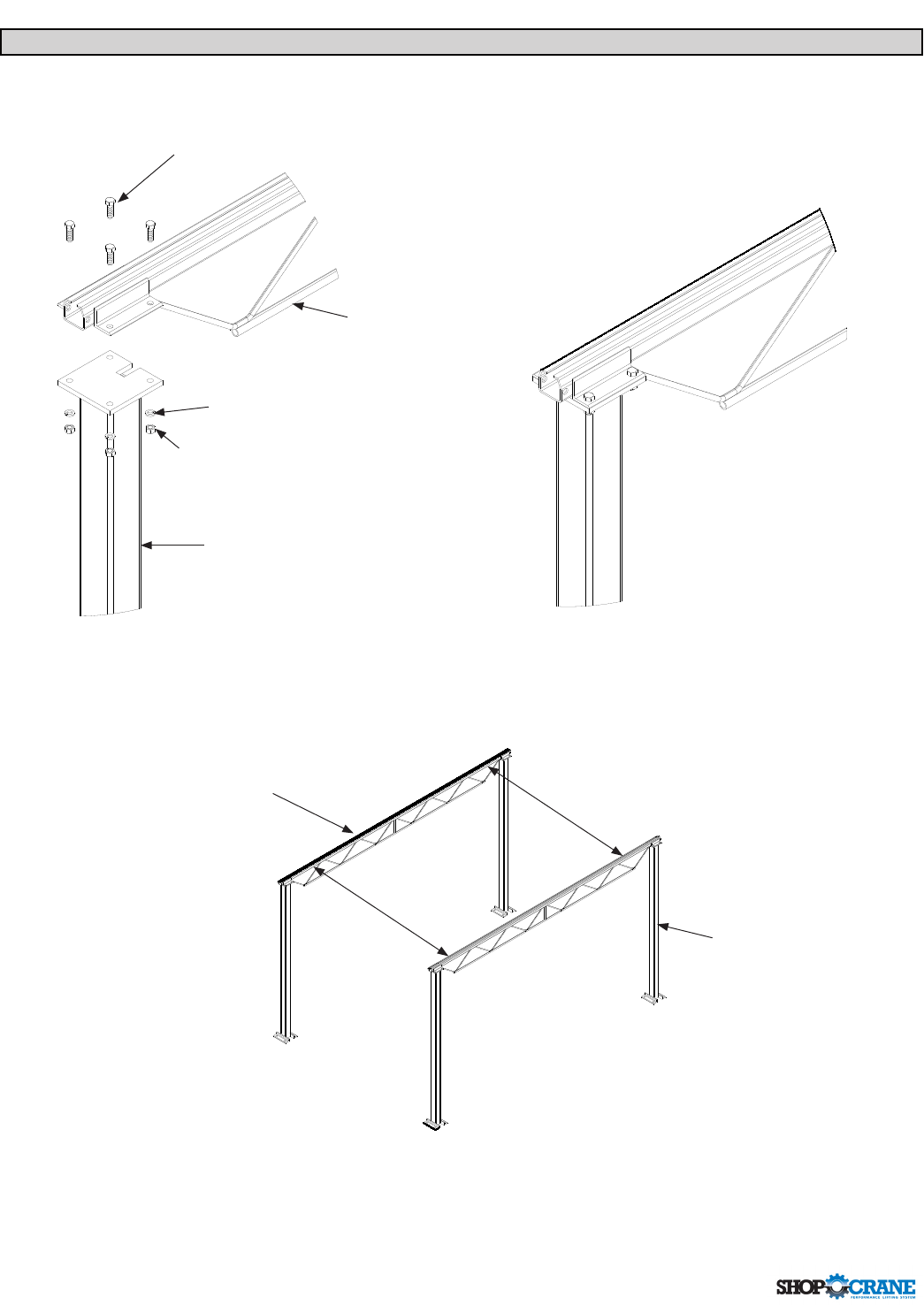

Diagram 3A. Attaching runway to column weldment.
5
1/11
COLUMN WELDMENT
1/2” HEX NUT
1/2” LOCKWASHER
RUNWAY WELDMENT
1/2-13, 1.5” LONG HEX BOLT
L +/- 1/16”
L +/- 1/16”
Diagram 3B.
RUNWAY
COLUMN
