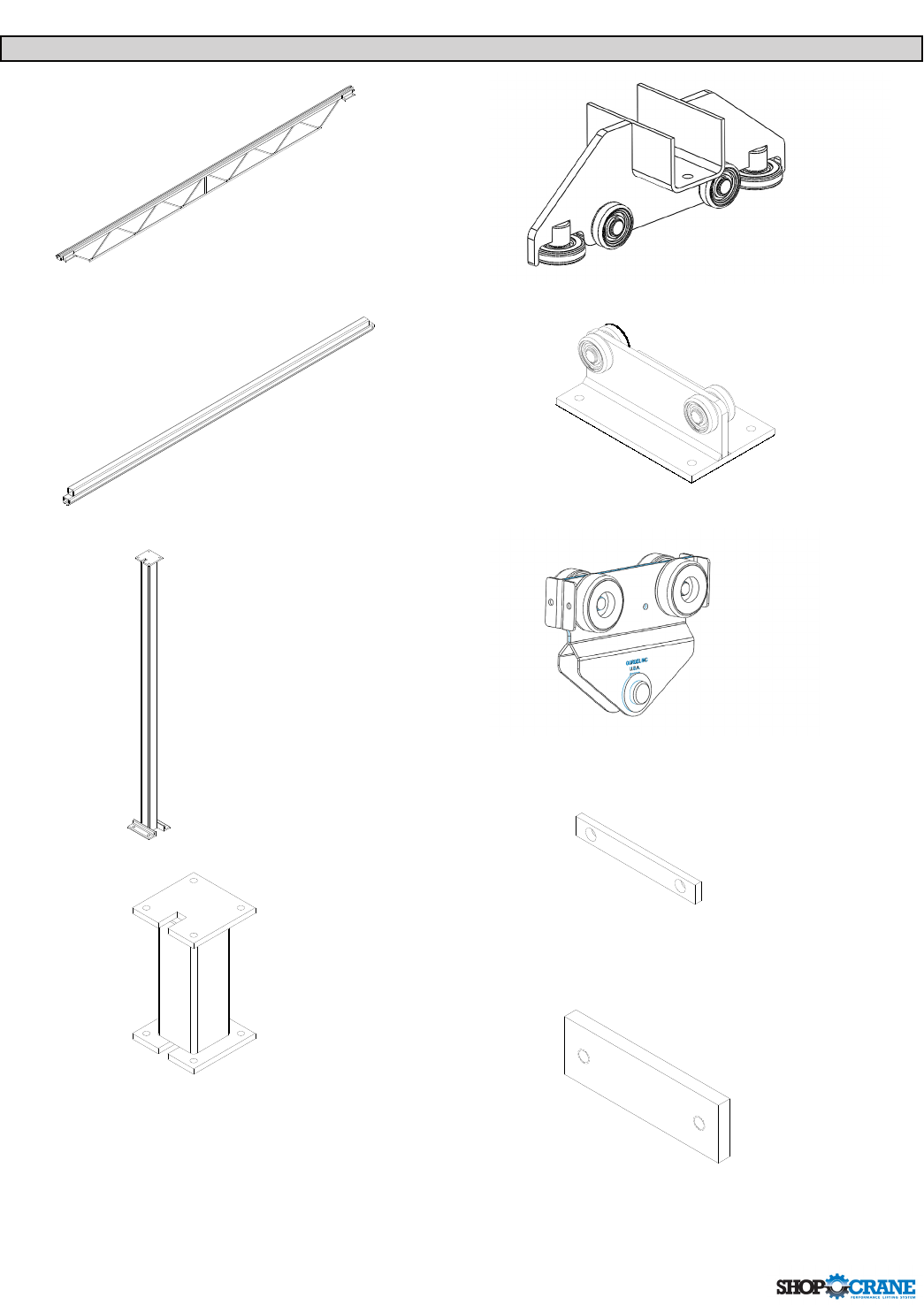

PARTS LIST

1

1/11

See packing list for specific quantities.

RUNWAY WELDMENT

END TRUCK

WIRE ROPE

HOIST TROLLEY

COLUMN EXTENSION

(OPTIONAL)

SPACER PLATE

CLAMP PLATE

COLUMN WELDMENT

BRIDGE WELDMENT

CHAIN HOIST

TROLLEY
