STEP 7 - COLUMN EXTENSION INSTALLATION
7.1 Place column extension weldment on top of column weldment. Make sure that slots in base plate are
aligned. Use (4) 1/2-13, 2” long hex bolts, hex nuts and lockwashers per column.
7.2 Tighten hex nuts until lockwashers are flattened.
11
1/11

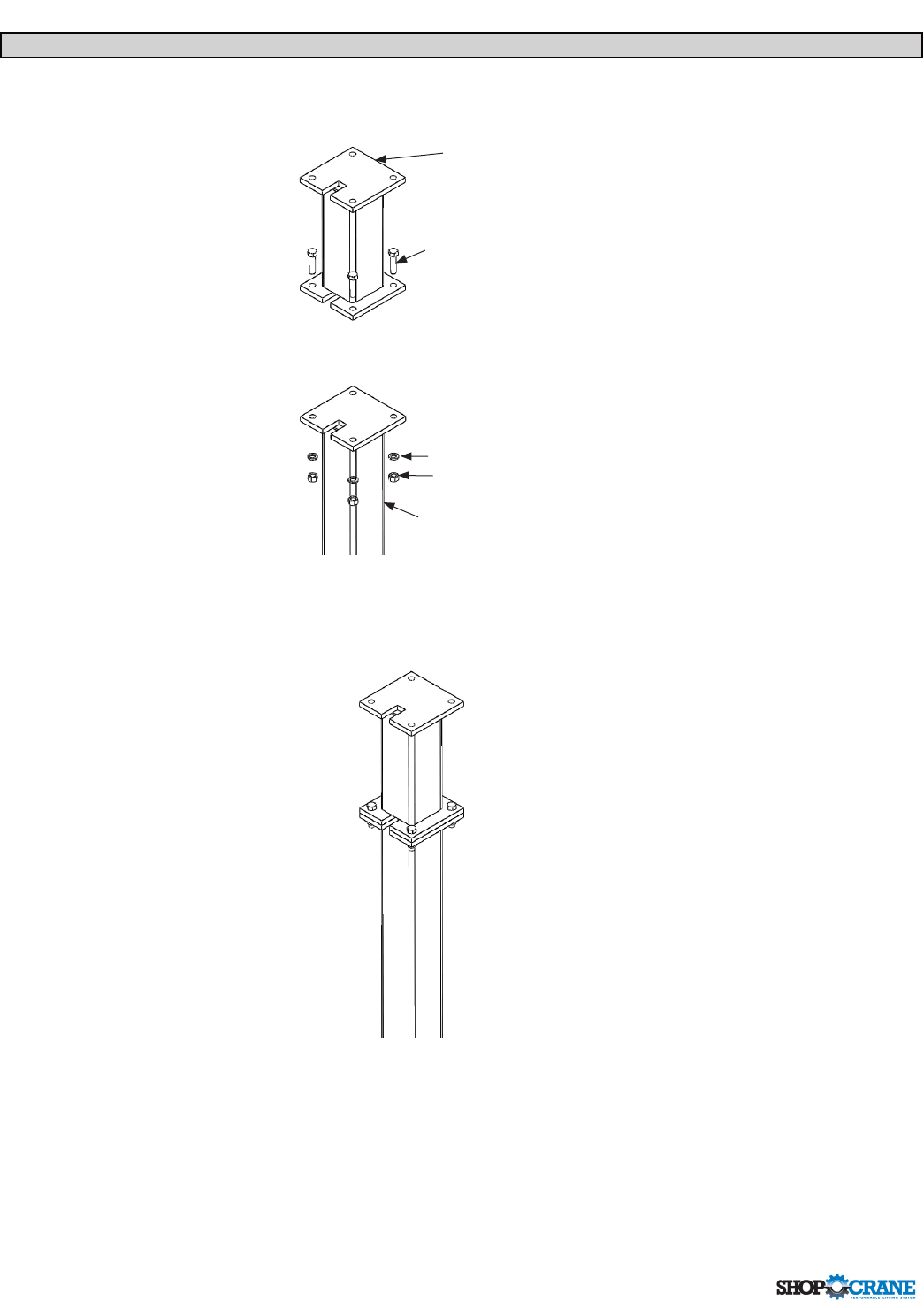

Diagram 7A. Attaching column extension to column weldment.
COLUMN EXTENSION
WELDMENT
1/2-13, 2” LONG HEX BOLT
1/2”-13 HEX NUT
COLUMN WELDMENT
1/2” LOCKWASHER
Diagram 7B. Assembled column extension.
