Option B : Mounting on Side of Wall (Second Choice)
Caution
Step7: Finalizing Outdoor Antenna Installation
Outdoor Antenna Installation
Make sure that the outside antenna is mounted at least 3 feet away from any
windows.
Option A : Outside Roof Pole Mount (Best Choice) Use an existing pole to
mount the outdoor unit in the optimal signal location. Use the picture for
reference.
10
Once you have tested the performance of the signal booster and made all
necessary adjustments, it’s time to finalize the installation.
In particular, cables for outdoor antenna locations
must be fixed. Otherwise, the internal wires of the
cable will be pulled off after the wind has been
shaken for a long time. The amplifier will not receive
the signal and the system will fail completely.

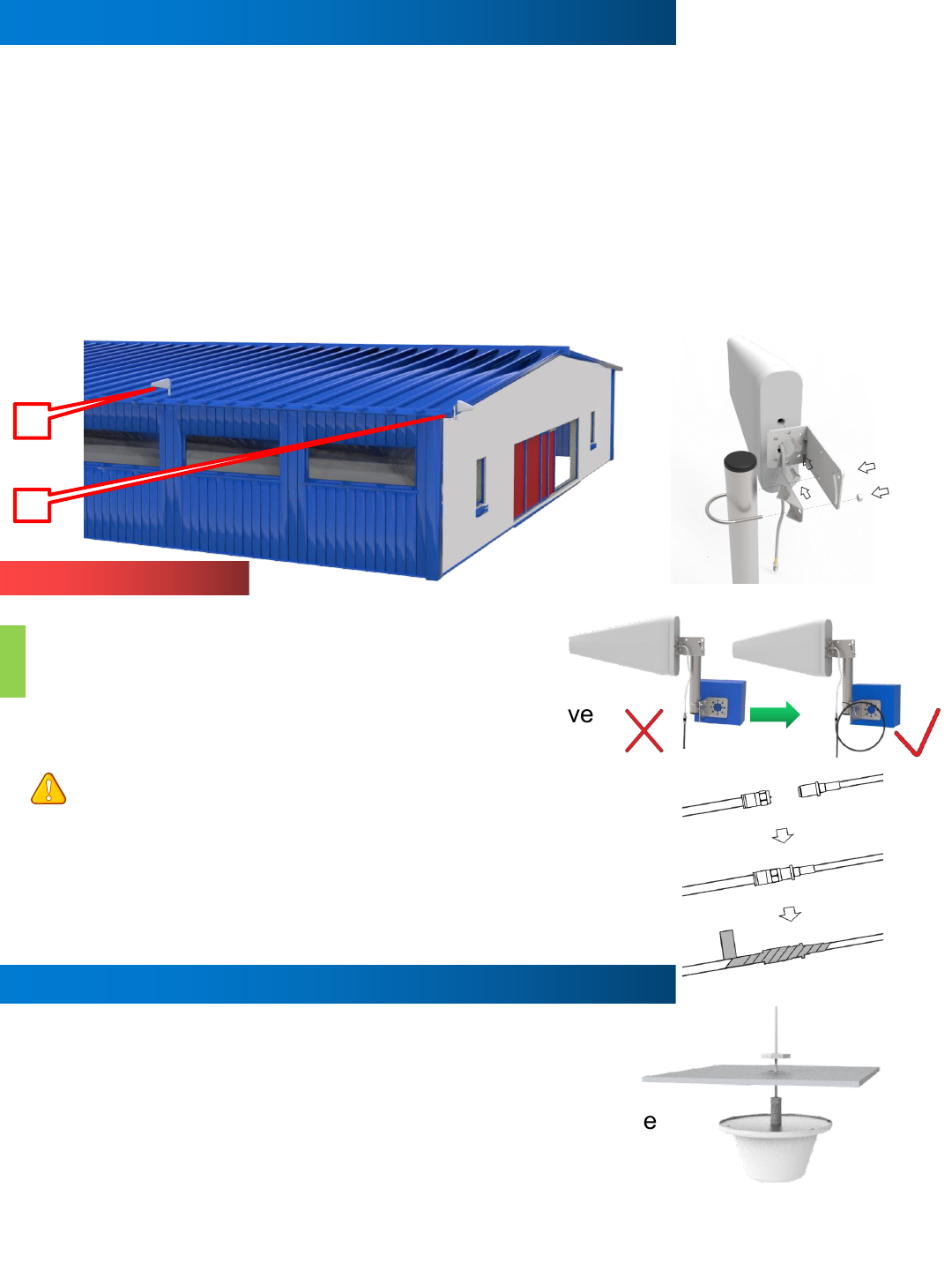

As shown in the figure, it is best to have the cable
around a single turn shape and then fix it.
Long-term rain or moisture erosion can damage the
electrical characteristics of outdoor antenna connectors.
Make sure connectors are well screwed in and seal the
connectors with glued tape.
A
B
Step8: Finalizing Indoor Antennas Booster Installation
a. Choose right position for the indoor antenna
• 20 cm away from facing any other metallic objects
• 50 cm away from any windows
• The inside antenna should be central the location of the
signal dead zone/weak signal area inside the building
b. Mount the inside antenna
