Gettingstarted

Frontpanel

Removethefrontpanel,youcanseethestructureofthebasestationasfollows:



1.Tem peratu recontrolfan:usedforheatdissipation,whenthetemperatureis

detectedtobeabove45℃,itrotatestoenhancedissipationoftheequipment.

2.Satellitemodule:Thesatellitemoduleworkswithsatelliteantenna,whichis

installedintheupperrightcornerofthesatellitemodule.Note:Somemodels

enotequippedwithsatellitemodule.

3. Dip switch: There are six dip switches, which is switched to ON (upward)

indicates which audio channel will be used. Settings of dip switch of base

stationsaresimilartothoseofthenetworkmanagementterminal,seeP21.

4.Busslot:Eachbasestationcon

tainstwobusslots,eachslotcanbeconnected

toabasestationorabasestationcontroller.Whenabasestationhasmultiple

channels,basestationsconnecttogetherthroughbusconnection,seeP21.

5.LCDdisplay:displaysoperationstatusofachannel,includingchannelnumber,

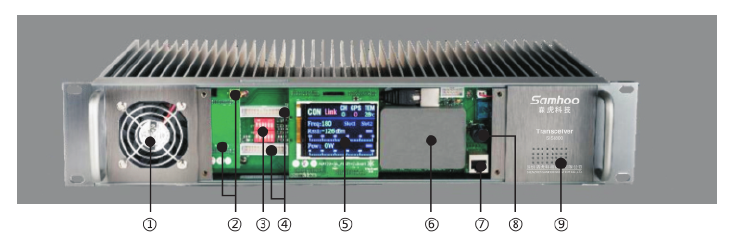

Figure1 - Front panel
