ParameterSettings
*Allsimulcastbasestationsmustbeofthesamefrequency.
*SimulcastbasestationsneedtoconnecttogetherthroughIPorE1link.

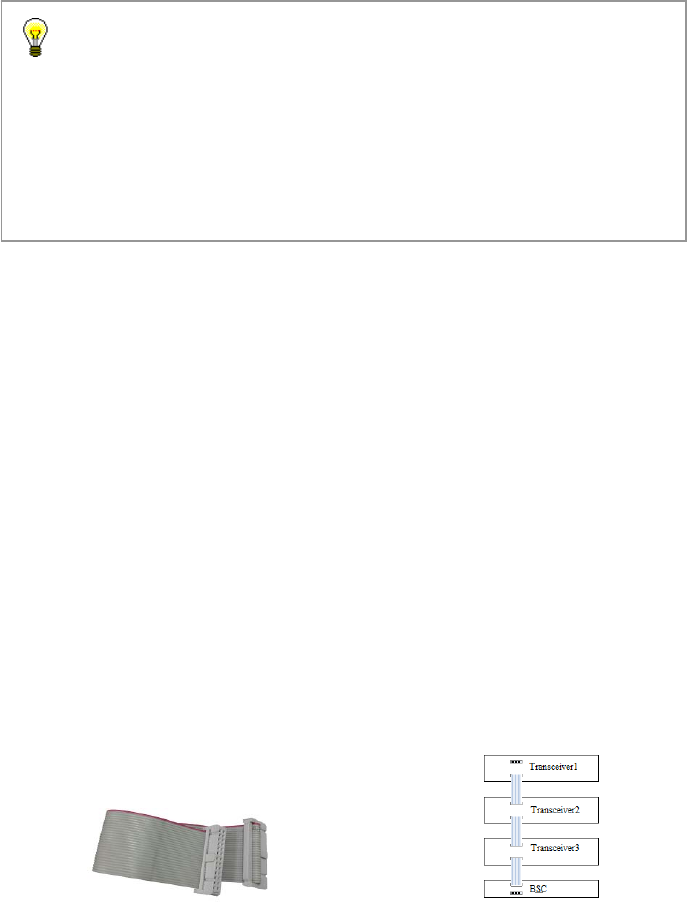

Multi‐channelConnection
Inabasestation,whenthenumberofchannelsis2 ormore,thechannelsare
connected through cables, as mostly seen in trunking base stations or DMR
pseudotrunking.
*Throughrowcableconnection,channelsareconnectedtogether.Thebusslot
(Fig.1‐④) has two rows, which respectively connect to the uppe
r and lower
transceivers.
*Basestationcontrollerisgenerallyusedinmulti‐channelconnection.



Note：1. In general, the satellite module is installed in factory. No need for
users to install.
2.The satellite module is not included in the standard portfolio of
some models.
3. Power off the equipment before installation of the satellite
module, and do not turn it on until completion of installation.
