* Connect the corresponding ports with feeders. Connect the antenna at the
ANT port, as shown in the diagram below. You need to use three feeders at
①②③connections.
*Takecaretothematchnessoftheports,oritmaycausedamagestotheports.
Seethecompletionofthec
onnectioninFig.3(onlyforthecasewhentheTX
frequencyishigherthantheRXfrequency).




Poweron/off
Poweron：

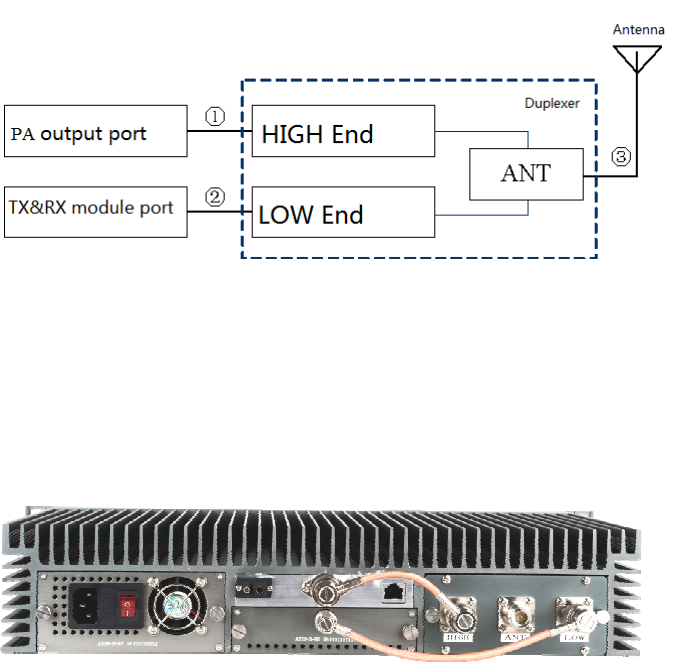

Figure 3-Cabling Diagram
