User's Manual

14

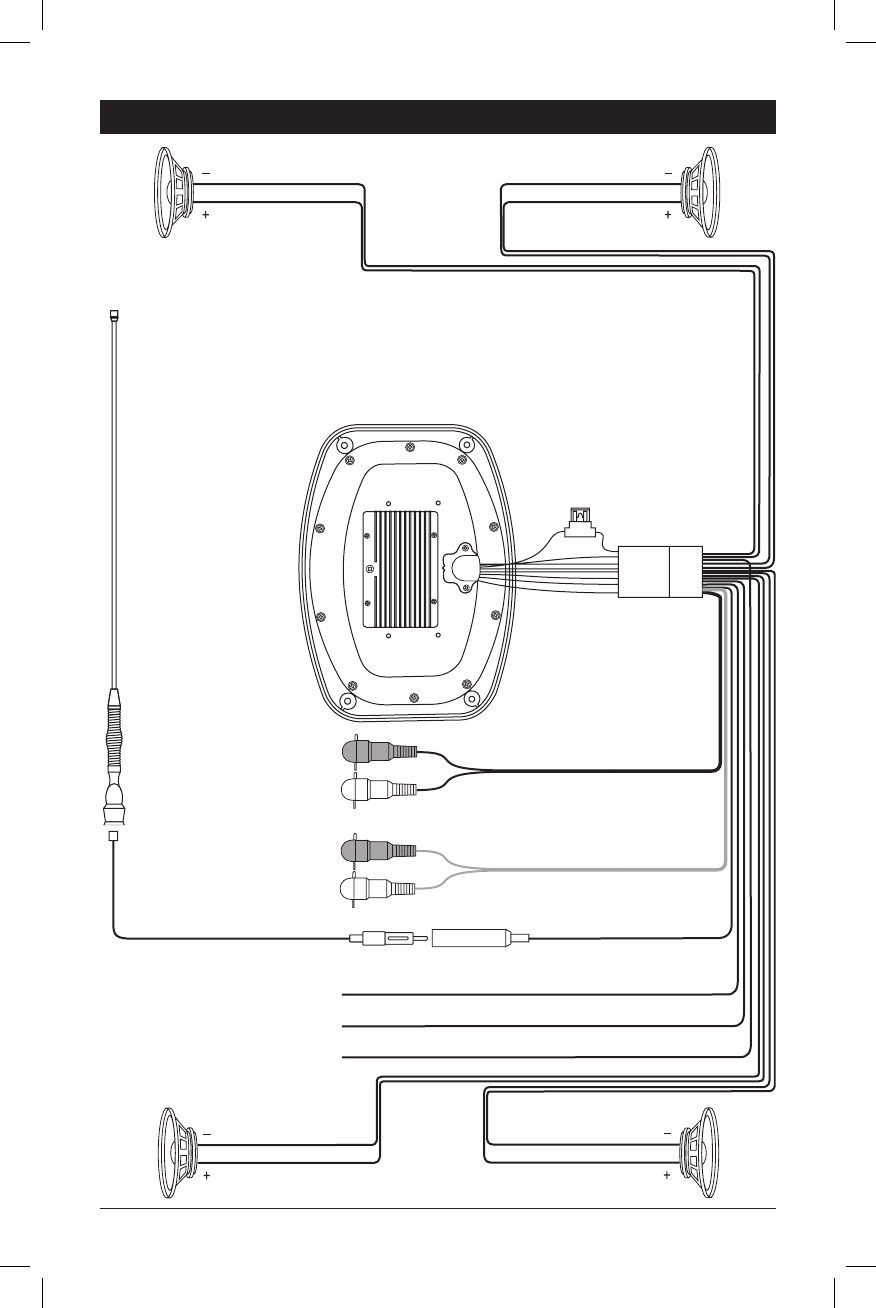

Wiring
External Automotive
Type Antenna
(Optional)
White/Black Wire
Left
Front
Speaker
White Wire
Gray/Black Wire
Gray Wire
Right
Front
Speaker
Right
Rear
Speaker
Violet/Black Wire
Violet Wire
Green/Black Wire
Green Wire
Left
Rear
S
peaker
Blue Wire
Black Wire Ground
Red Wire
10 Amp
Fuse
Black Wires
Gray Wires Audio Out
Right
Left
Right
Left
Audio In
(+) to 12 Volt Battery
Trigger for Amp (+12VDC output))
