User's Manual

Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 5 of 7

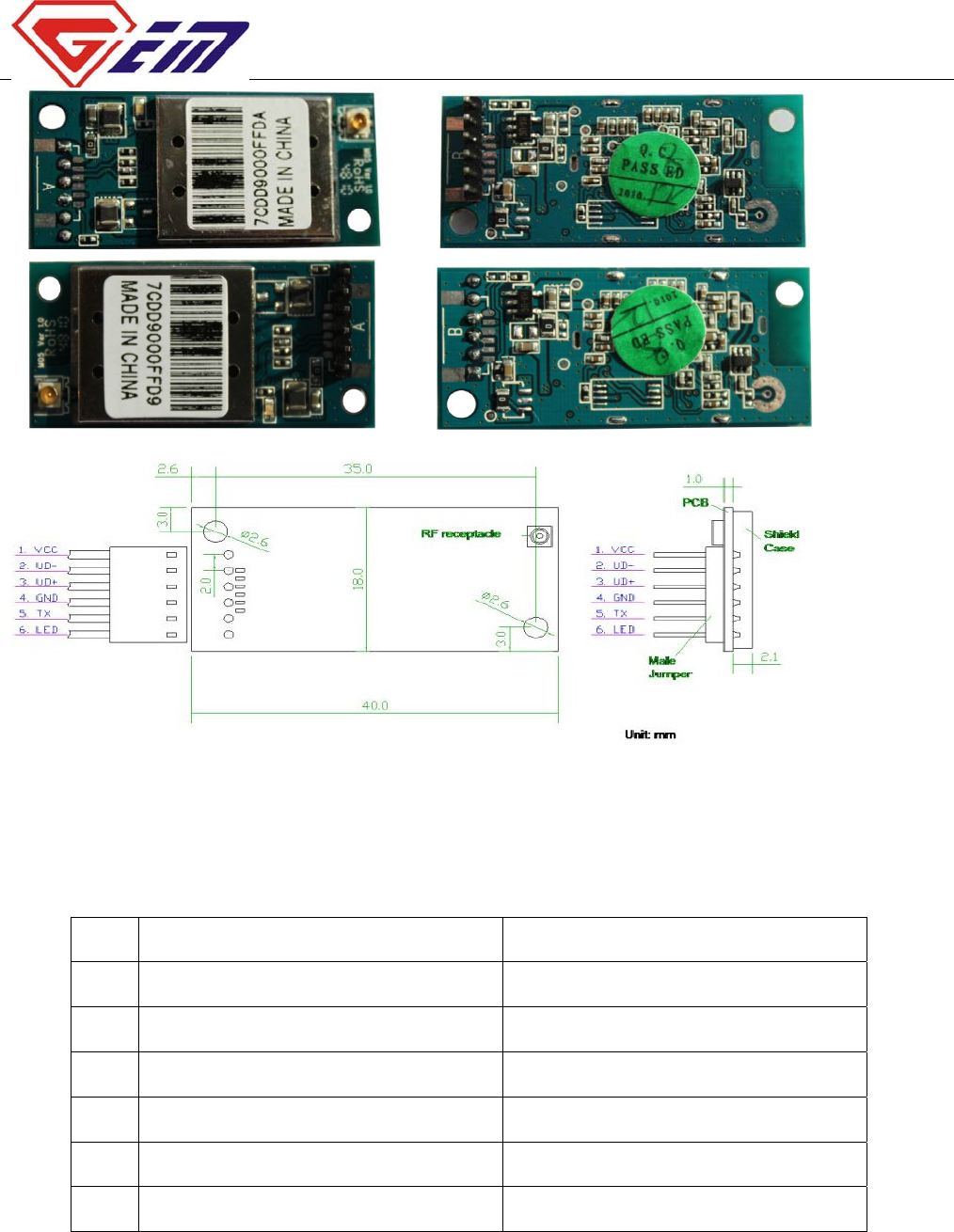

(To be noted: For special application, the direction of the male jumper can be upside
down mounted)
2.4.2 Pin definition:
Pin 6-pin 1.0mm pitch connector 6-pin 2.0mm pitch male jumper
1 VCC (3.3 VDC or 5.0VDC) VCC (3.3 VDC or 5.0VDC)
2 UD- ( USB data-) UD- ( USB data-)
3 UD+ (USB data+) UD+ (USB data+)
4 GND (Ground) GND (Ground)
5 LED (Wireless TX status) TX (RF ON/OFF control)
6 TX (RF ON/OFF control) LED (Wireless TX status)
*The TX ( RF ON/OFF control) is low level activated to OFF.
2.4.3 Antenna Connection Information
An external antenna via an I-PEX receptacle.
2.5 Order information:
