User's Manual

Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 3 of 7
Bus Interface
USB 2.0/USB1.1
USB Interface
6-pin, 2.0mm pitch male jumper , or 1.0mm pitch connector
Antenna Impedance
50 ohm
2.2 Hardware Information
GWF-M05 is low power consumption and low-cost compact Wireless USB Adapter.
2.2.1 Block Diagram

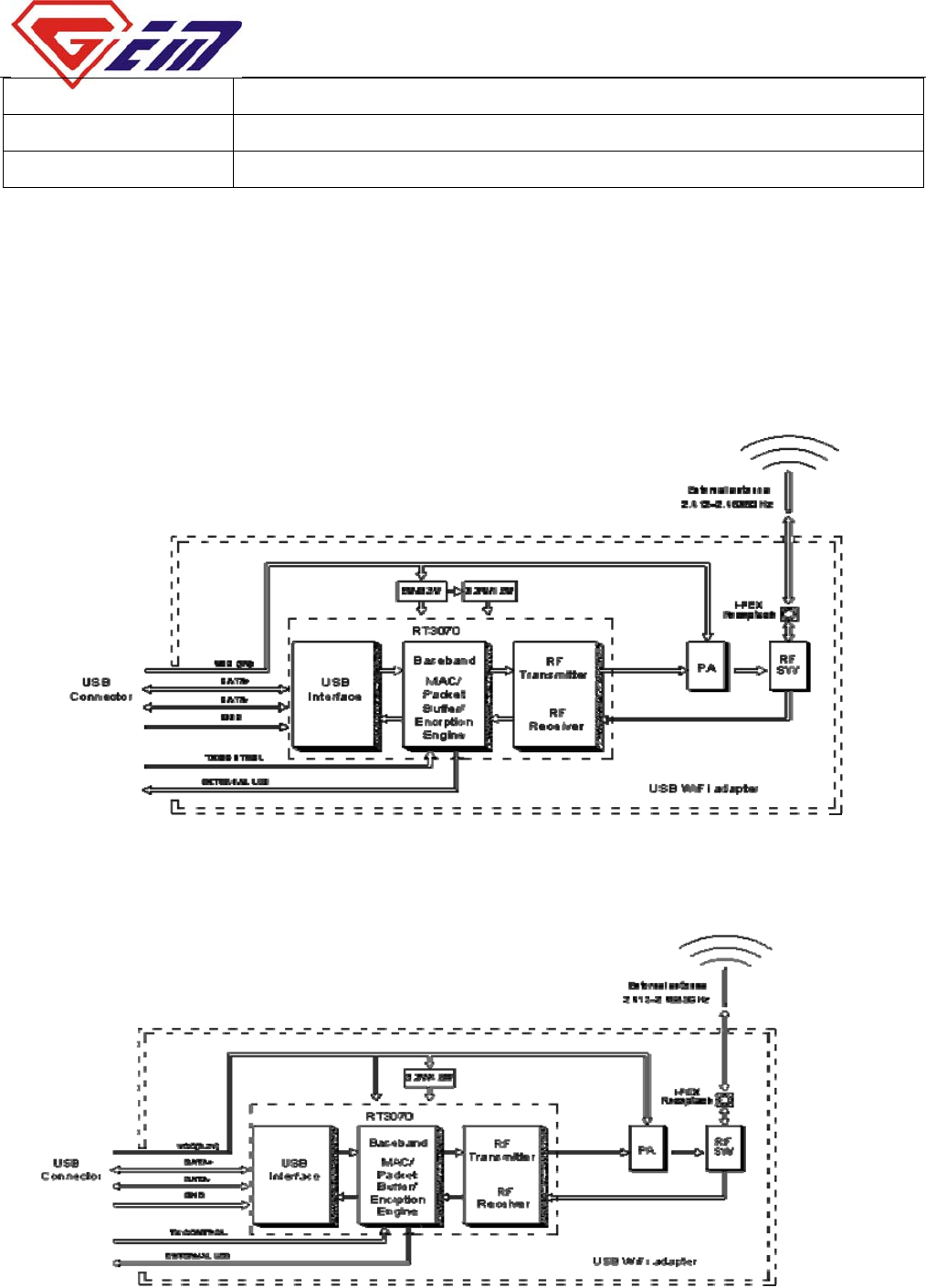

Figure 1: System Block Diagram of GWF-3M0５ 5.0V Ｗｉｒｅｌｅｓｓ ＵＳＢ Ａｄａｐｔｅｒ 󴛭󳃯󰿮󵼅󶔍󵓁
Figure 2: System Block Diagram of GWF-3M05 3.3V Ｗｉｒｅｌｅｓｓ ＵＳＢ Ａｄａｐｔｅｒ
