Specifications

Microwave Motion Sensor MC613V D RC Version: A0
Shenzhen Merrytek Technology Co.,Ltd
Add: 2
nd
and 3
rd
floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China
Tel: [phone] Fax: [phone] Website: www.merrytek.com
Page
2
of
8

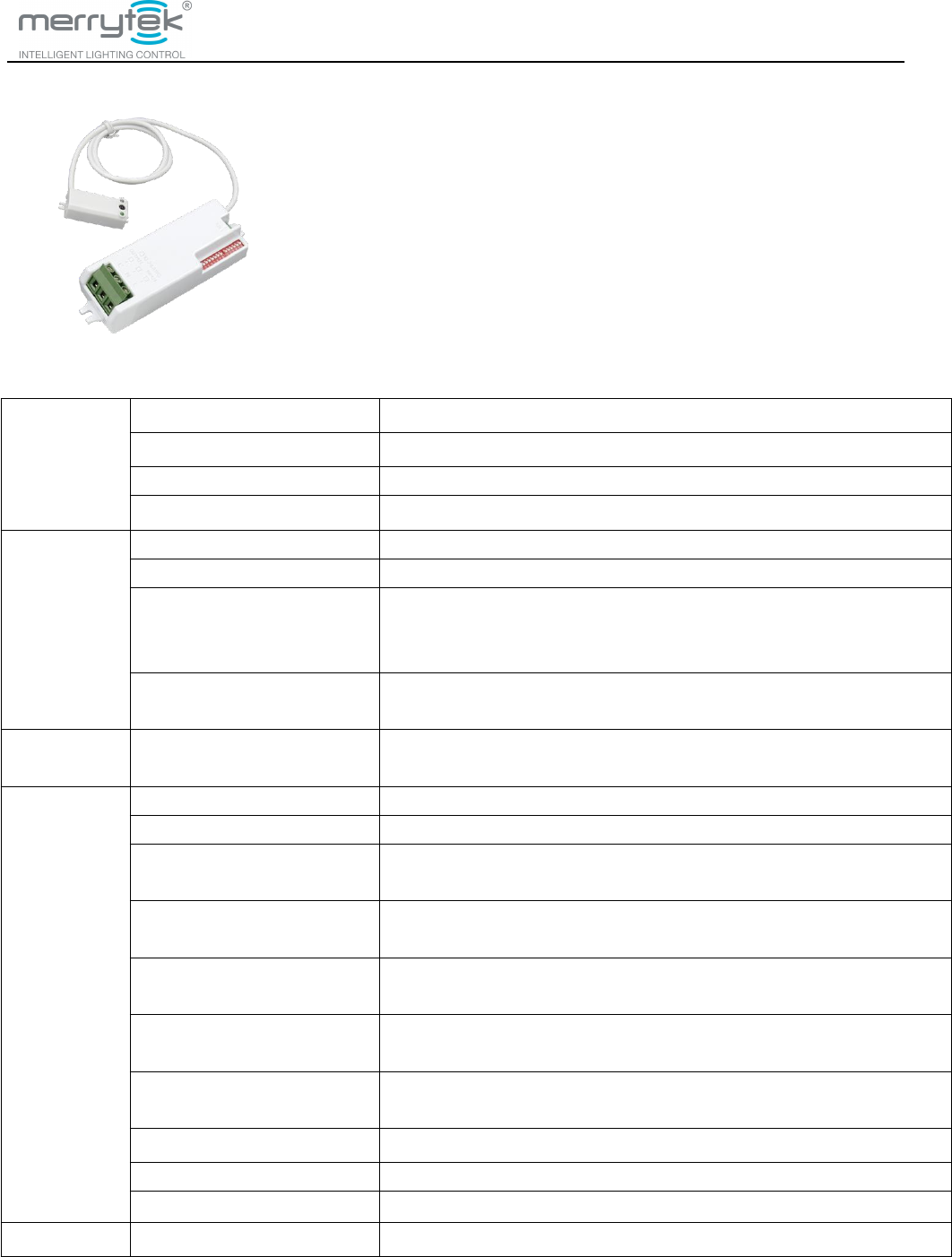

1. Features
2. Parameter
Input
Operating Voltage Rage
108-305V AC 50/60Hz
Rated Voltage
120/277V/347VAC 50/60Hz
Stand-by Power
< 1W
Surge Test
N--L: 1kV
Output
Working Mode
ON/OFF function, 0-10V DC dimming
Type of Load
Inductive or Resistive Load
Load Power
120V, 50/60Hz, 3.6A, ballast;
277V, 50/60Hz, 3.4A, ballast;
347V, 50/60Hz, 3.3A, ballast;
Max. Surge Power
50A (50% Ipeak, twidth =500uS, 230V AC full load, cold start);
80A (50% Ipeak
,
twidth =200uS, 230V AC, full load, cold start）
Dim
Interface
0-10V Dimming
< 50mA （Non-constant source）
10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 40% (3.9-4.1V)
Sensor
Parameters
Operating Frequency
5.8 GHz ±75 MHz, ISM Band.
Transmitting power
0.5mW Max.
Hold time
8S/30S/1min/5min/10min/20min/30min
Remote Controller Setup :8S1min/5min/15min/30min
Stand-by DIM Level
10%/20%/30%/40%
Remote Controller Setup :10%/20%/30%/40%/50%
Stand-by Period
0S/1min/3min/5min/10min/30min/+∞
Remote Controller Setup :0S/1min/5min/30min/+∞
Detection Area
100%/75%/50%/25%
Remote Controller Setup ; 100%/75%/50%/25%
Daylight Sensor
5lux/15lux/30lux/50lux/100lux/150lux/Disable
Remote Controller Setup : 5lux/15lux/50lux/150lux/Disable
Detecting Radius
See note 2
Mounting Height
6m Max
Detecting Angle
150°(wall mounting) 360°(ceiling mounting)
Operating
Operating Temperature
-35℃…+70℃
1. Built-in motion sensor and daylight sensor for Intelligent control
2. Attachable design ,suitable for more luminaires
3. 1-10v port can match dimmable driver to achieve corridor function
4. Dim+/Dim- to set occupancy light level
5. All sensor Parameters can be set by DIP switch or Remote
6. North American version for linear & batten lights
7. With Ambient learning function
8. 5 years warranty
