User's Manual

13
Audio/Video
cable
Connected to the TV
Connected to the Video Player
AUDIO OUT
LR
120V ~ 60Hz
VIDEO OUT
VIDEO
Video Player
DIGI TAL
Video input jack ( Yellow )
Audio left channel input jack ( White )
Audio right channel input jack ( Red )
NOTE:

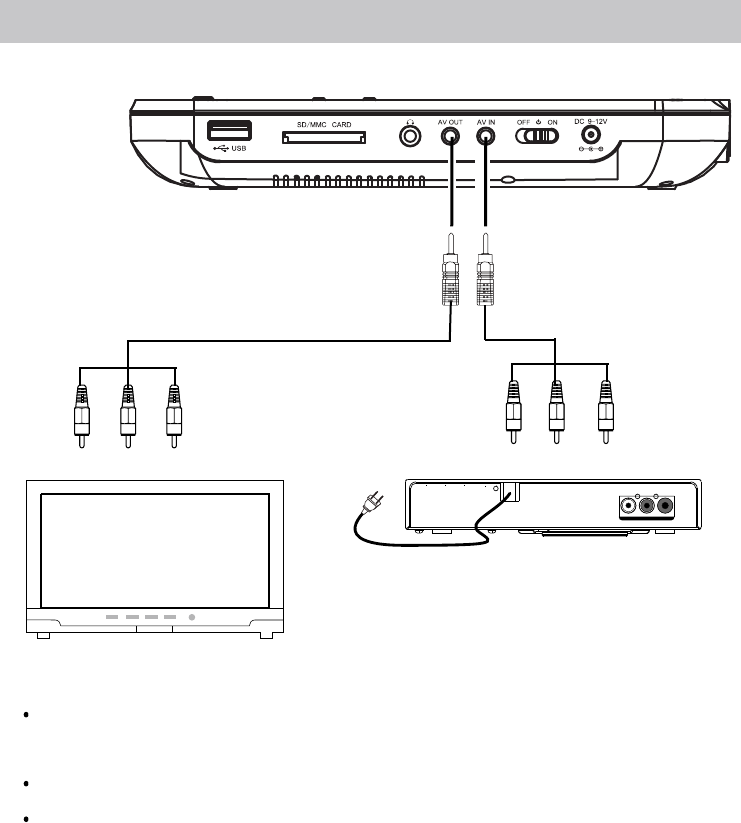

CONNECTIONS
Connecting to a TV or Video Player such like DVD; VCR; DVR Players ... (AV connection cable not included)
The default setting of the unit is AV Out, if connect to external Video
to turn back to AV Out mode.
Player (such like DVD;
VCR; DVR Players ... ), press the SOURCE Button
to set to AV IN mode ("AV IN" will appear
on the screen). Press again
The unit itself may not display when connecting through AV OUT jack.
Using the supplied Headphone to listen privately.
-Switch on the unit, the Bluetooth Indicator will blink.
-Switch on the Headphone, it will connect with the unit automatically after a few seconds.
-The Bluetooth Indicator will stay lit when pairing is successful.
The unit itself may not display when connecting through AV OUT jack.
Using the supplied Headphone to listen privately.Using the supplied Headphone to listen privately.
