 DIP switch downlink attenuation setting:
Att 1 2
0 dB off off
5 dB ON off
10 dB off ON
15dB ON ON
 DIP switch uplink attenuation setting:
Att 3 4
0 dB off off
5 dB ON off
10 dB off ON
15dB ON ON

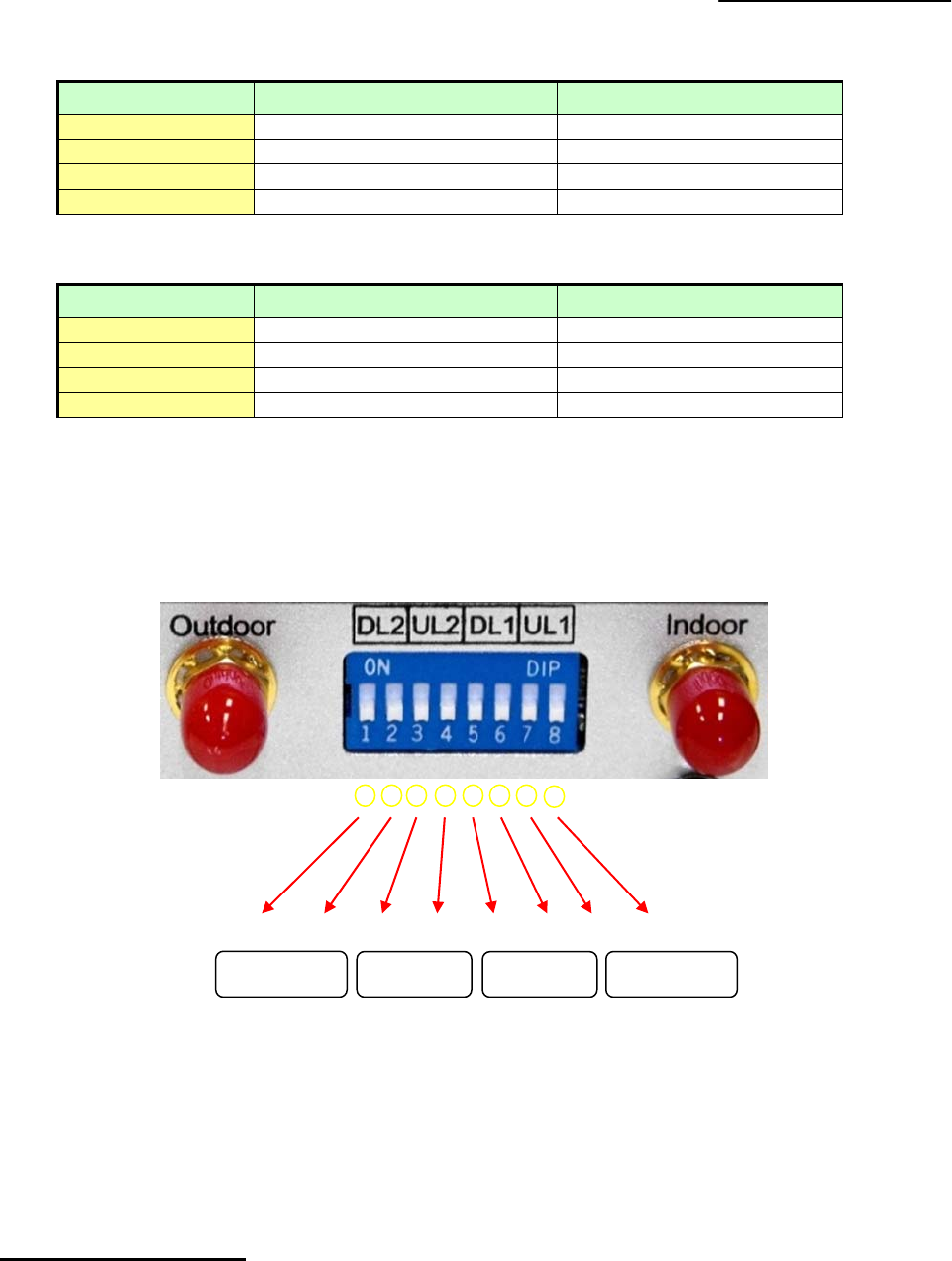

 For F15B-CP：
Turn ON the dip switches to reduce gain as follows:
Put ON a pair of switches for a total of 15dB reduction in gain.
(DL1 & UL1 – Alarm Low) – For 800MHz or 900 MHz Band
(DL2 & UL2 – Alarm High) – For 1700, 1800, 1900 & 2100 MHz Band
Remark: In single system, there is only one system could be set.
9.3.3. Booster Commissioning
z Downlink gain setting
First the alarm LED only indicates the downlink input power level, here we use color of Alarm LED
to adjust the gain of the Booster. Alarm LED color must remain green. As for the downlink working
performance, it is a good working point that Alarm LED maintains “Green” color with the intention of turning
orange; here we refer as “edge point”. At this time, downlink output power and coverage effect are stable.
10dB 5dB
10dB 5dB
10dB 5dB
10dB 5dB
