User Manual

4 UNDERSTAND THE PORTS, MGC DIP
SWITCH,LEDSTATUS
4.1 Repeaterports

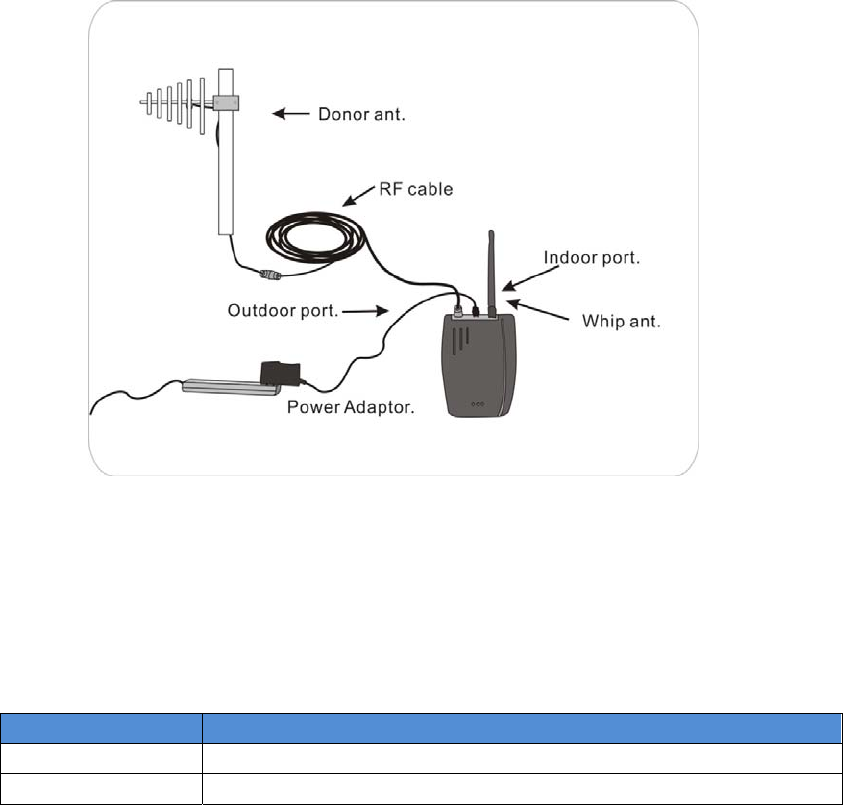

1) Outdoor port: connected with the donor antenna by cable.
2) Indoor port: connected with server antenna directly or by cable.
3) DC IN: connected with power supply.


4.2 LEDstatus
1. StatusanddefinitionofPOWERindicators:
Status Definition
Green
Normal
Off
DC power problem

2. StatusandDefinitionofALARMindicators;AlarmLEDonlyworksfor
