14. THROTTLE HOLDING SETTING

Setting Method:

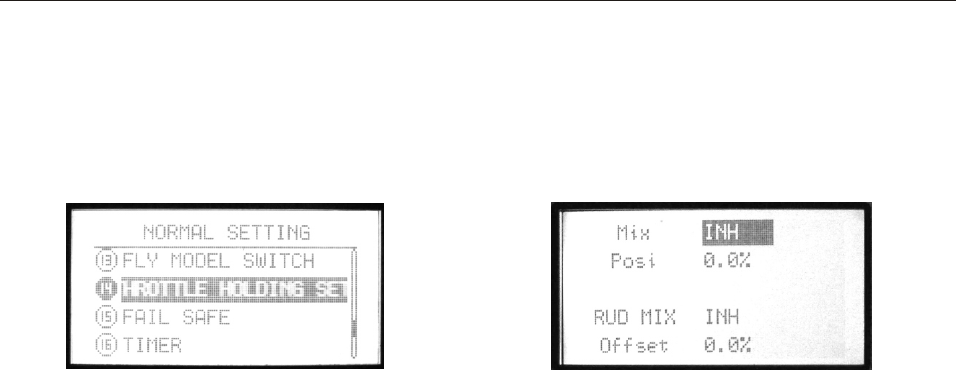

Use up/down button to select Throttle holding setting, OK

button is to enter editing.

Steps:

1. Use direction buttons to select editing part.

2. Use +/- button to active or inhibit the mix funtion.

3. Use +/- button to set the throttle holding position.

4. Use +/- button to active or inhibit

the rudder mix.

5. Use +/- button to set the mix rate (offset). Press OK button for

seconds can back to default.

6. Press EXIT after setting.

This function can make the throttle servo operating at a low

speed position at the end of a flight. The range is between

-75% and +75%.

User can set the mix function with rudder under the throttle

holding state and the mix rate (offset).

This function switch can be found in “Fly model switch”.
