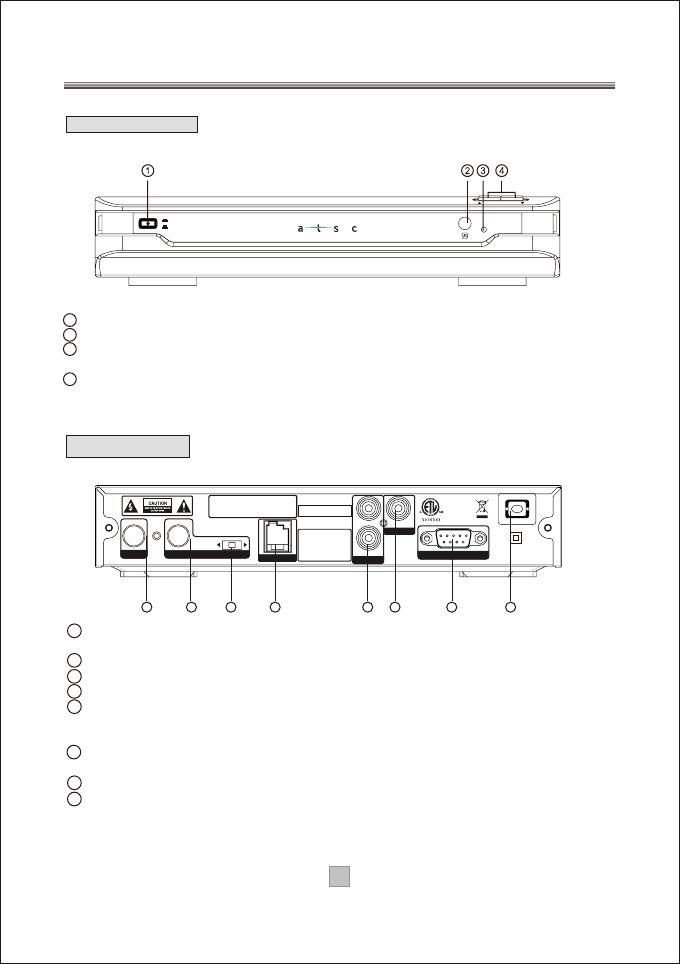

1.2 Front Panel and Rear Panel Illustration
1.2.1 Front Panel
1
2 RF OUT: This socket will transmit the NTSC CH3/4 RF signal to your TV ANT in socket.
3 CH3/4 SWITCH: Select NTSC channel (Channel3:61.25MHz, Channel4:67.25MHz).
4
5
6
7 SERVIC
8 MAIN POWER:Connect to main power supply using the power cord.
RF IN :
AUDIO L/R:
: This RS-232 PORT for software upgrade by manufacturer only and not for user.
Connect the AIR antenna or CATV cable here.(if the cable provider is passing
through 8VSB signal.)
SMART ANT I/F: Connect to an external smart antenna.
Connect these terminals to the analog audio inputs of a TV set (i.e., to a
TV that has jacks for L/R inputs). Or connect these terminals to the L/R inputs of a
separate audio component.
Video output: Connect this jack to the Video Input jack on your TV using an Audio/Video
cable.This output port supports the only SD output..
1 POWER BUTTON: Used to turn on or off of the main power of the unit.
2 REMOTE CONTROL SENSOR: Used to receive the signal from the remote control.
3 STANDBY INDICATOR: Used to visually show power state of the ,
the red LED will be light if the entered standby mode.
4. CHANNEL UP/DOWN: Used to change the channels in non-menu state.
Atsc Converter Box
Atsc Converter Box
1 2
3
4
5
6
1.2.2 Rear Panel
7 8
