User's Manual

4
/
12
Continuous YELLOW @ stronger input signals, AGC is working；
Twinkly YELLOW@ self–oscillation happen ,AGC is working.
Continuous RED@ power supply is shut down；
Twinkly RED@ self–oscillation happen but power supply is NOT shut down.
②Power supply jack: The booster uses a power input range of DC 5-12V.
③
INDOOR and OUTDOOR port
：The two ports are used to connect outdoor and indoor
antennas.
(3)Antennas and Cables:
In order to use the Booster, you still need the corresponding indoor antenna 1pcs,
outdoor anten na 1pcs, outdoor cable 1pcs and indoor cable 1pcs.

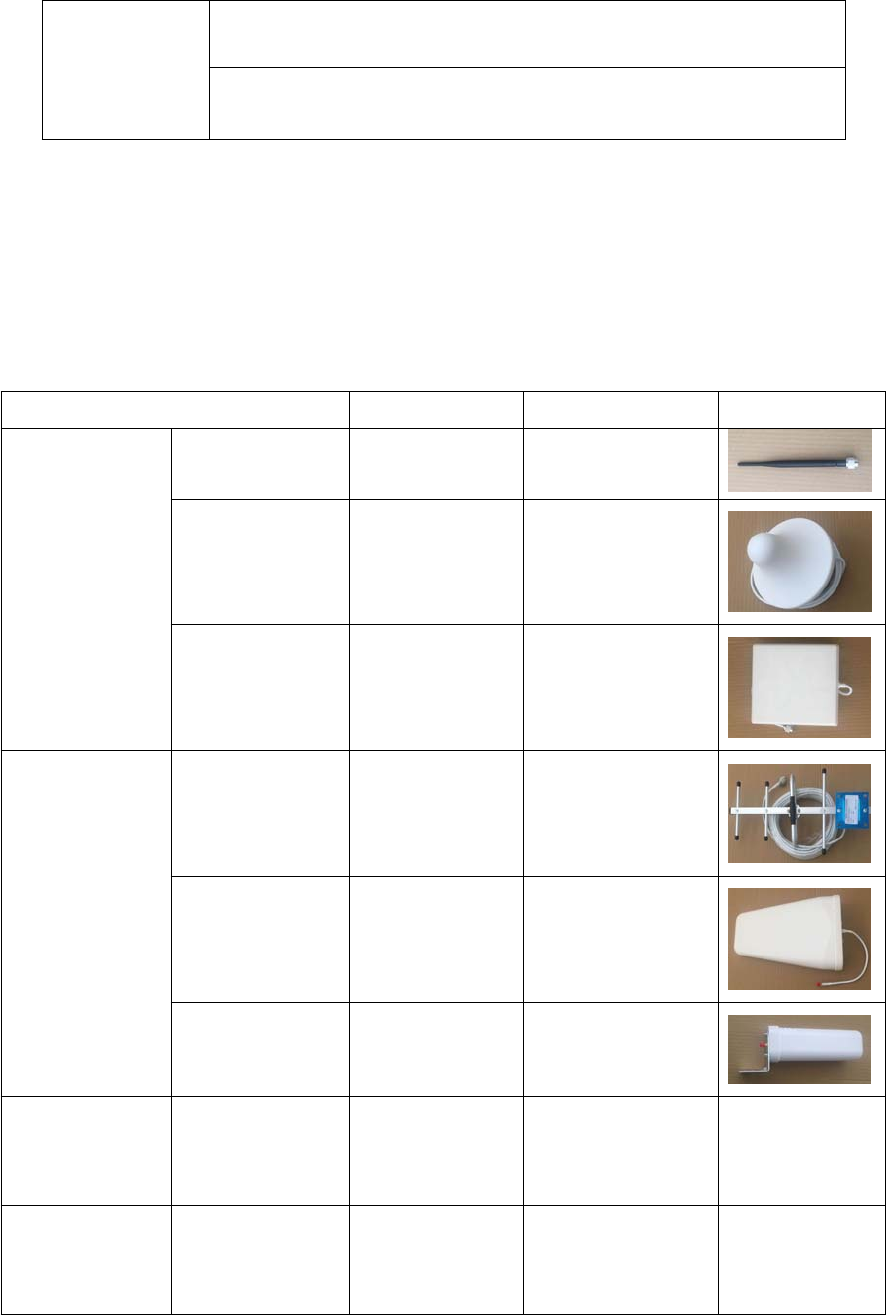

Antenna s and cables kitting information are as follows
Name Model Gain/Loss Photo
Indoor Antenna
Rubber Antenna
PTE-RB-800-2100
3dbi @698～787MHz
Ceiling Antenna PTE-CI-800-2500
3dbi @698～787MHz
Indoor Panel
Antenna
PTE-PN-800-2500
7dbi @698～787MHz
Outdoor Antenna
YAgi Antenna
PTE-YG-800/1900
8dbi @728-756MHz
LPDA Antenna
PTE-LO-700-2500
9dbi @728-756MHz
Omni directional
glass fiber Antenna
PTE-GF-700-2500
3dbi @728-756MHz
Indoor Cable 20 feet 3D-FB
Coaxial cable with
N male connector
PTE-3D-FB-5NB 2.29db
@728-756MHz
Outdoor Cable 50 feet 3D-FB
Coaxial cable with
N male connector
PTE-3D-FB-10NB 5.49db @698～
787MHz
