4-28

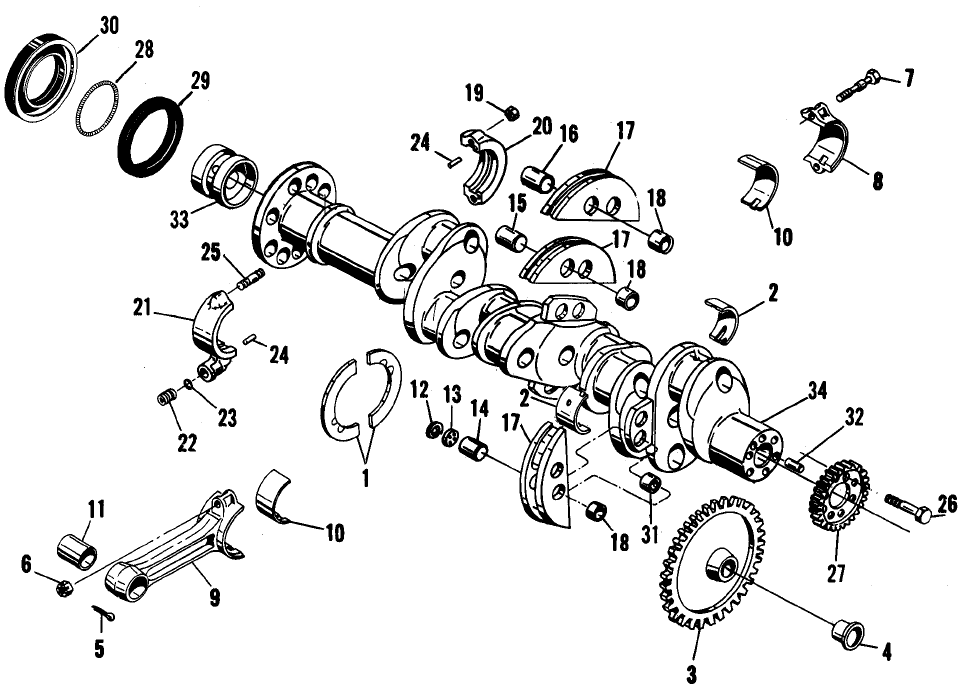

FIGURE 4-24. CRANKSHAFT GROUP (TYPICAL OF SANDCAST MODELS
1. Washer, Thrust 19. Nut, Marsden
2. Bearing, Crankshaft, Main 20. Collar, 1-3-5 Side
3. Gear, Idler 21. Collar, 2-4-6 Side
4. Bushing, Idler Gear 22. Sleeve, Oil Transfer
5. Pin, Cotter 23. "0" Ring
6. Nut, Slotted 24. Pin, Roll
7. Bolt, Special 25. Stud
8. Cap 26. Screw
9. Rod, Connecting 27. Gear, Crankshaft
10. Bearing 28. Spring
11. Bushing 29. Reinforcing Ring
12. Ring, Retaining 30. Seal
13. Plate, Counterweight 31. Bushing
14. Pin, Counterweight 32. Dowel
15. Pin, Counterweight 33. Plug, Oil Control
16. Pin, Counterweight 34. Crankshaft Group
17. Counterweight, Crankshaft
18. Bushing, Counterweight
