4-15

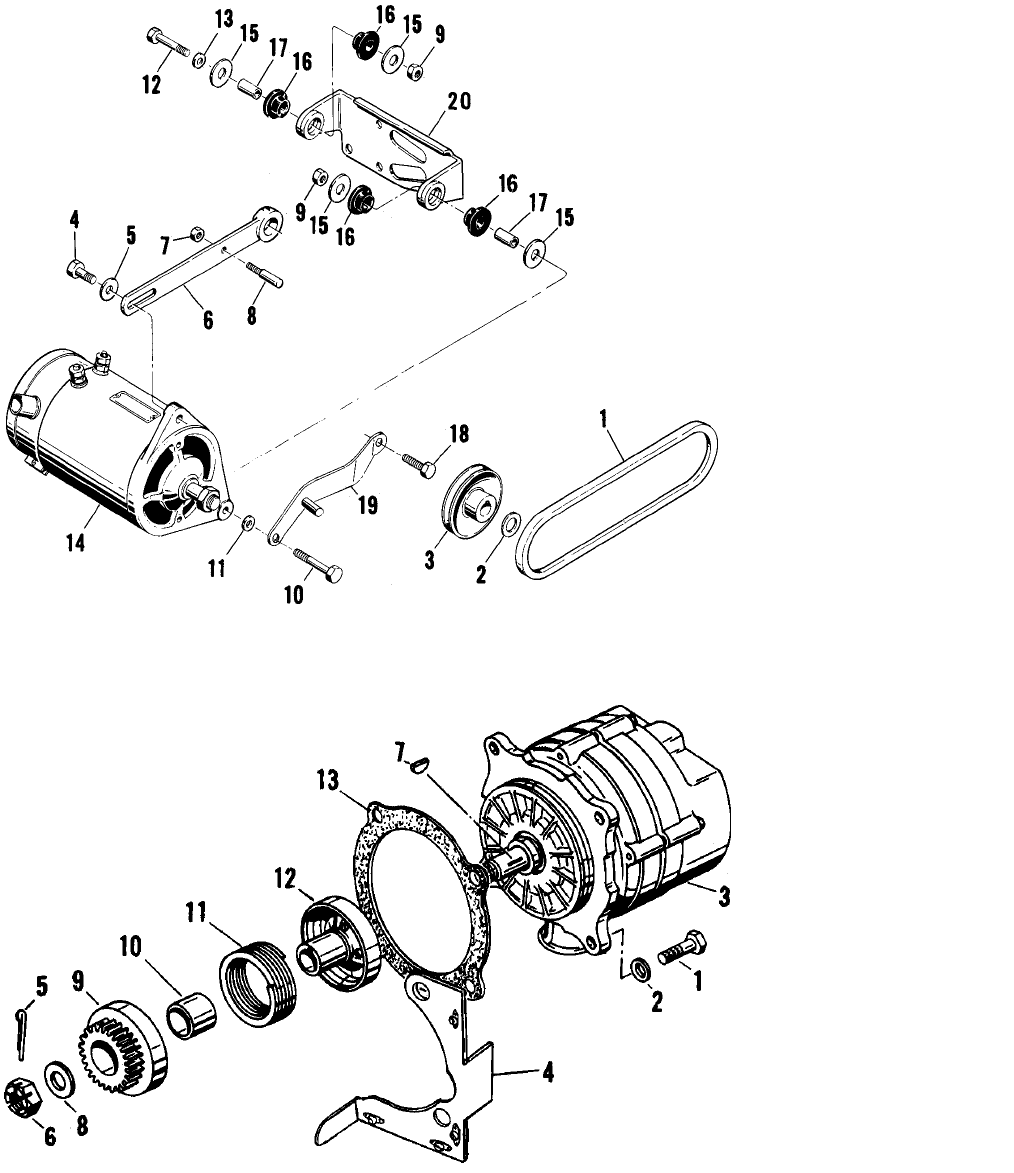

FIGURE 4-14. GENERATOR ASSEMBLY
(IO-520-E)
FIGURE 4-15. ALTERNATOR ASSEMBLY ON PERMOLD ENGINES
(IO-520-B & C)
1. Belt
2. Spacer
3. Sheave
4. Bolt
5. Washer, Plain
6. Bracket Assembly
7. Nut, Elastic Stop
8. Pin, Idler Kiss
9. Nut, Plain, Hex
10. Bolt
11. Washer, Plain
12. Bolt
13. Washer, Plain
14. Generator
15. Washer, Special
16. Bushing
17. Spacer, Bushing
18. Bolt
19. Bracket Assembly
20. Bracket
1. Bolt
2. Washer, Plain
3. Alternator
4. Support Assembly, Baffle
5. Pin, Cotter
6. Nut, Slotted, Hex
7. Woodruff Key
8. Washer, Thrust
9. Gear
10. Bushing
11. Spring, Clutch
12. Hub, Alternator
13. Gasket
