4-13

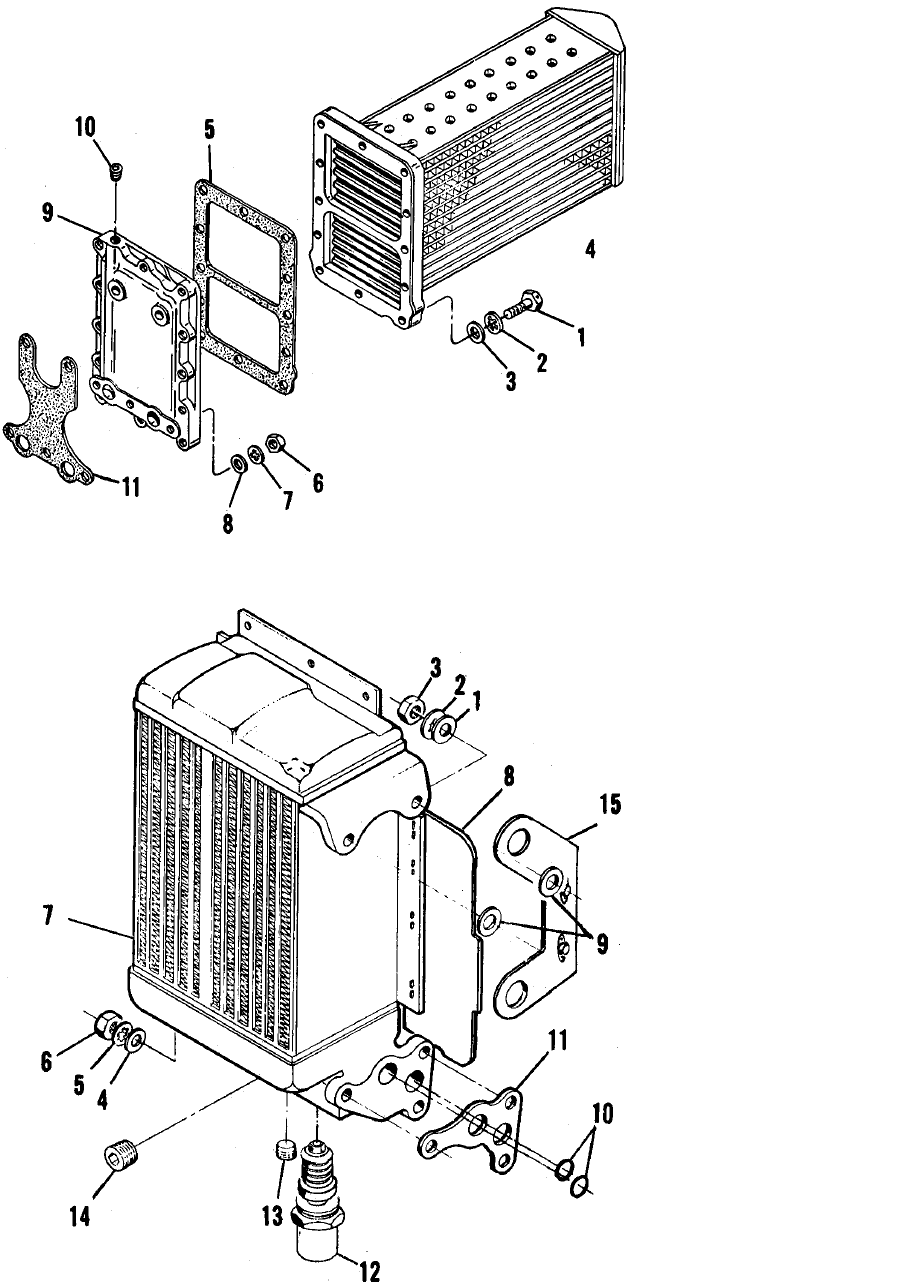

FIGURE 4-11 OIL COOLER (TYPICAL ON SANDCAST CRANKCASE).
FIGURE 4-12 OIL COOLER (TYPICAL ON PERMOLD CRANKCASE).
1. Screw
2. Washer, Lock
3. Washer, Plain
4. Cooler Assembly
5. Gasket
6. Nut, Plain, Hex
7. Washer, Lock
8. Washer, Plain
9. Plate
10. Plug, pipe
11. Gasket
1. Washer, Plain
2. Washer, Lock
3. Nut, Plain, Hex
4. Washer, Plain
5. Washer, Lock
6. Nut, Plain, Hex
7. Oil Cooler
8. Baffle
9. Gasket
10. “O” Ring
11. Gasket
12. Valve Assembly
13. Plug
14. Plug
15. Support Assembly
