4-11

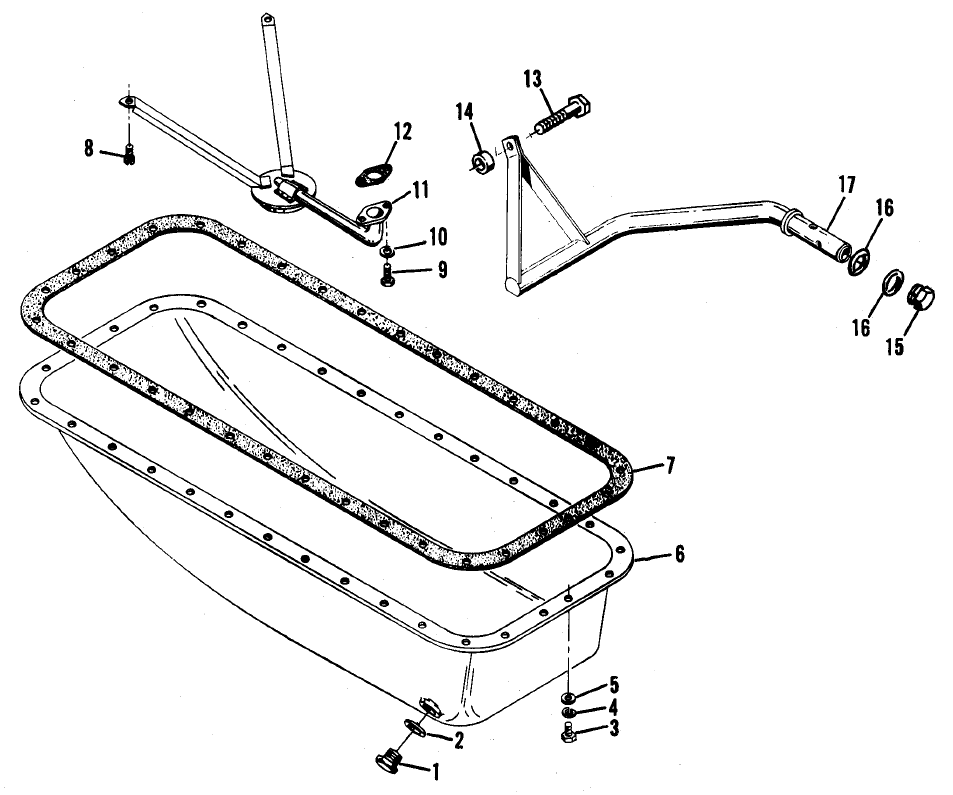

FIGURE 4-9 OIL SUMP (STAMPED ALUMINUM SHEET METAL IO-520-A,C,D,E,F & K)
1. Plug, Oil Drain 7. Gasket, Oil sump 13. Bolt.
2. Gasket, Annular 8. Screw 14. Washer, Special
3. Screw 9. Screw 15. Nut
4. Washer, Lock 10. Washer, Plain 16. Gasket, Annular
5. Washer, Plain 11. Tube Assembly 17. Tube Assembly
6. Sump Assembly, Oil 12. Gasket
