MAY 1980 4-9

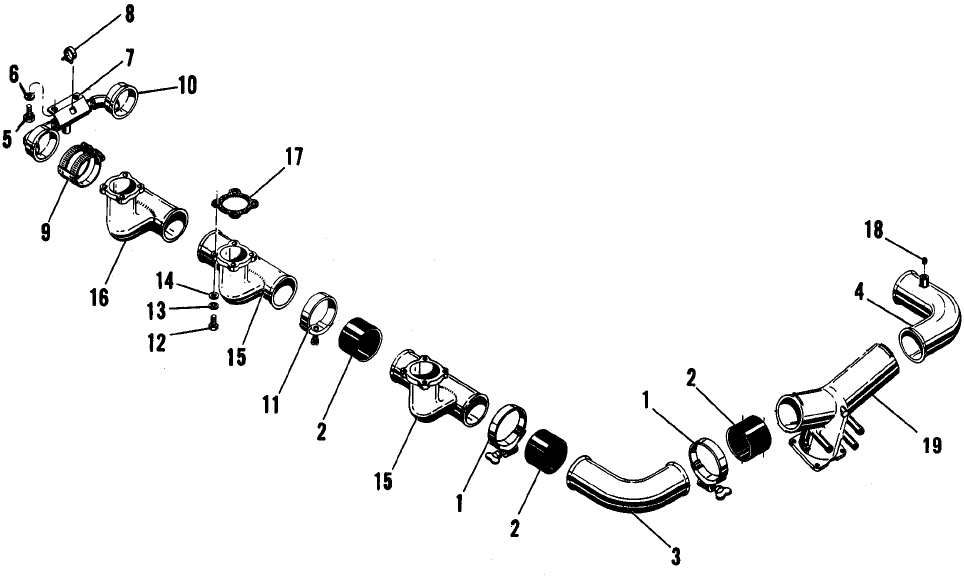

FIGURE 4-7 INDUCTION SYSTEM. (IO-520-D)
1. Clamp 12. Screw
2. Hose 13. Washer, Lock
3. Tube 14. Washer, Plain
4. Tube 15. Tube Assembly
5. Screw 16. Tube Assembly
6. Washer, Lock 17. Gasket
7. Bracket 18. Plug, Pipe
8. Clamp 19. Throttle Assy., Air
9. Clamp Assembly
10. Tube Assembly
11. Clamp, Hose
