9-3

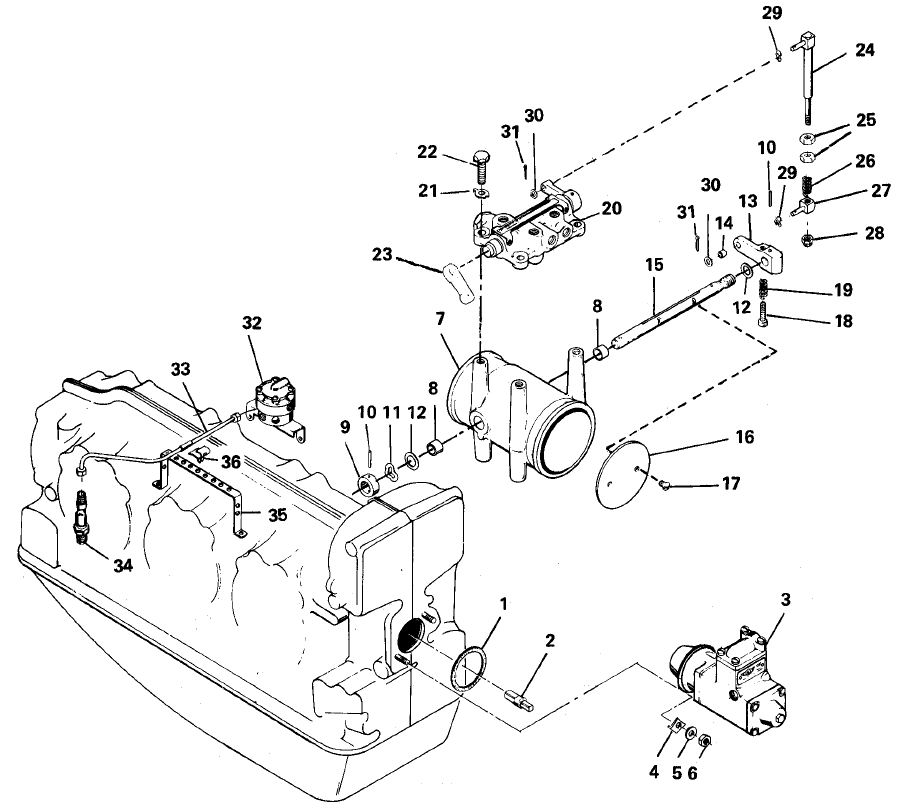

FIGURE 9-2. FUEL INJECTION SYSTEM.
1. Gasket, Fuel Pump to Crankcase 19. Spring
2. Coupling 20. Control Assembly
3. Fuel Pump 21. Washer Tab
4. Washer, Holding 22. Bolt
5. Washer, Lock 23. Lever
6. Nut 24. Rod Assembly
7. Throttle Assembly 25. Nut
8. Bushing 26. Spring
9. Collar 27. Rod End
10. Pin 28. Nut, Self Locking
11. Washer, Wave 29. Washer, Wave
12. Washer, Plain 30. Washer, Plain
13. Lever Assembly 31. Pin, Cotter
14. Bushing 32. Fuel Manifold Valve Assembly
15. Shaft, Throttle Plate 33. Tube Assembly
16. Plate, Throttle 34. Nozzle Assembly
17. Screw 35. Bracket, Fuel Discharge Tube
18. Screw, Adjusting 36. Clamp, Tube-to-Bracket
