8-6

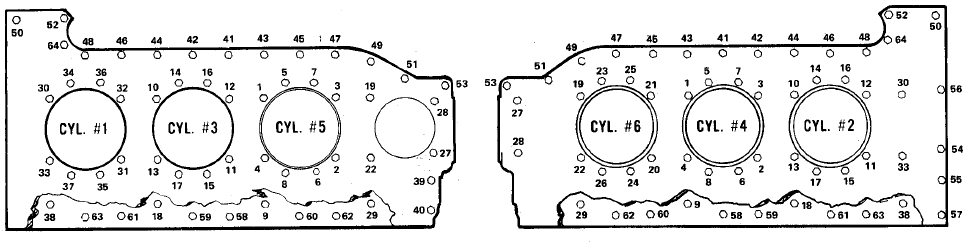

FIGURE 8-8 TORQUING SEQUENCE
a. Nuts on both ends of thru bolts must torqued. b. All stud and thru bolt threads to be lubricated with
castor oil.
ASSEMBLY PROCEDURE.
1. Insert thru bolts.
2. Snug bolts No. 27,28,54& 56.
3. Install cylinders 4 & 5 and Tighten stud nuts
to 350 in. lbs.
4. Tighten thru bolts No. 1 & 4 to 350 in. lbs. in
sequence shown.
5. Tighten thru bolts and stud nuts to 500 in. lbs.
6. Tighten thru bolts No. 1 & 2 in accordance with
note below. Tighten bolt No. 9 to 200 in. lbs.
7. Repeat above on cylinders No. 2 & 3.
8. Repeat above on cylinder No. 6, including bolts
No. 18 & 27 in sequence shown.
9. Repeat above on cylinder No. 1
10. Tighten bolts No. 38 thru 64 to specified torque in
sequence shown.
11. NOTE: Both sides of crankcase to be cross
torqued simultaneously.
NOTE- Reference .50 thru bolts, item 6 above.
1. If Part Number 634504 and 634505 bolts and nuts
are used, use 700 in. lbs. of torque.
2. If Part Number 539050 and 539969 bolts and nuts
are used, use 650 in. lbs. of torque.
