Instruction manual

74
QUICKTRONIC
®
30mm height
Max. number of ECGs
with automatic circuit
breakers
Ip[A] T
H
[µs] 10A 16A
QT-FH 1x14-35 CW
20 210 17 28
QT-FH 2x14-35 CW
20 210 17 28
QT-FQ 1x24 CW
17 155 25 41
QT-FQ 1x39 CW
17 155 25 41
QT-FQ 1x49 CW
20 210 17 28
QT-FQ 1x54 CW
20 210 17 28
QT-FQ 1x80 CW
28 230 8 13
QT-FQ 2x24 CW
20 210 17 28
QT-FQ 2x39 CW
28 230 8 13
QT-FQ 2x49 CW
28 230 8 13
QT-FQ 2x54 CW
28 230 8 13
QT-FH 1x14
17 155 25 41
QT-FH 1x21
17 155 25 41
QT-FH 3x14 CW
20 230 17 28
QT-FH 4x14 CW
20 230 17 28
QUICKTRONIC
®
for FC
Max. number of ECGs
with automatic circuit
breakers
Ip[A] T
H
[µs] 10A 16A
QT-FC 1x55/230-240 S
28 230 8 13
7.4 Lamp/ECG
Combinations
Valid Lamp-ECG combinations are available in the Lighting Programme.
Edition January 2005 also available in
Section 9 or under
www.osram.com/ecg
7.5 OSRAM Installation
Tips for T5-Systems

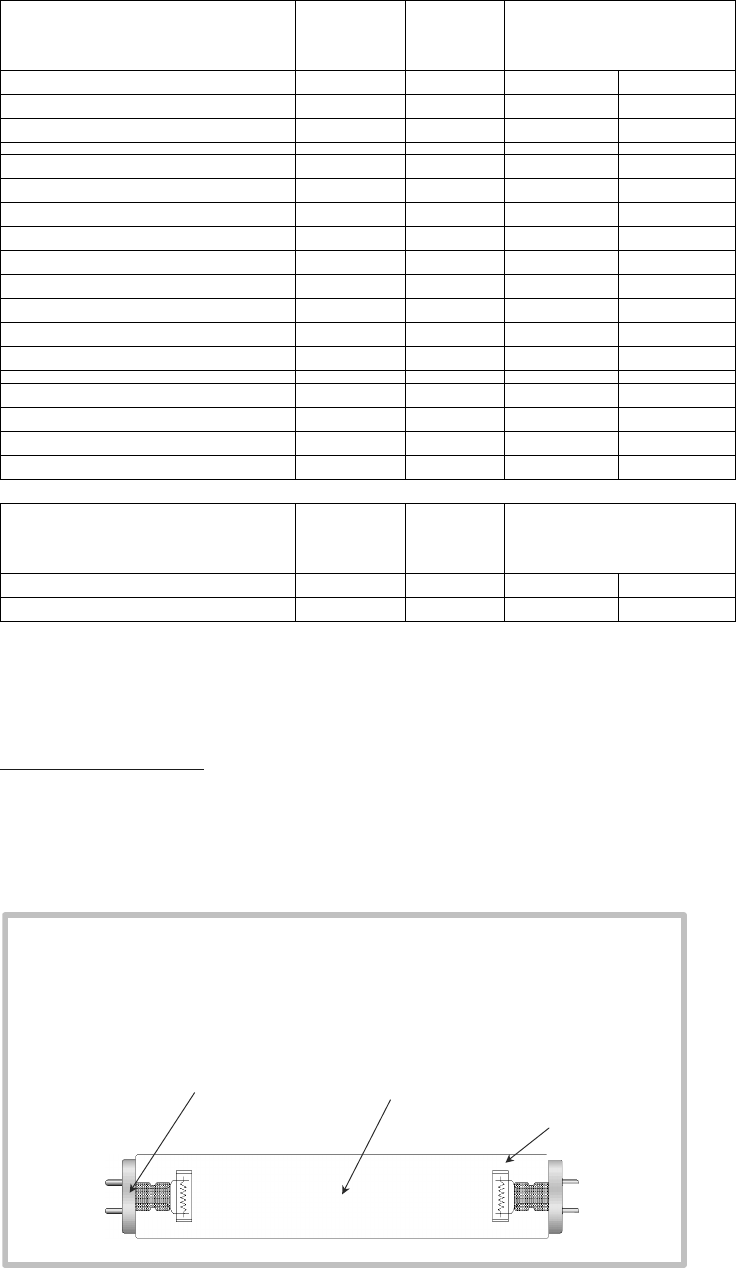

Maximum lamp temperatures for T5/∅ 16 mm fluorescent lamps compared
to T8/
∅ 26 mm-fluorescent lamps
Max. temp. at lamp caps
Lamp centre Electrode area
°C °C °C
T8/L36W 120 45...55 100...120
T8/L58W 140 50...65 110...130
T5/FH28W 120 40...60 160 (200...250*)
T5/FQ54W 120 50...70 160 (200...250*)
*) in FH - E C G - Luminaires
the lamp could be incorrectly used,
e
. g . FH35W with FQ80W
