Instruction manual

69

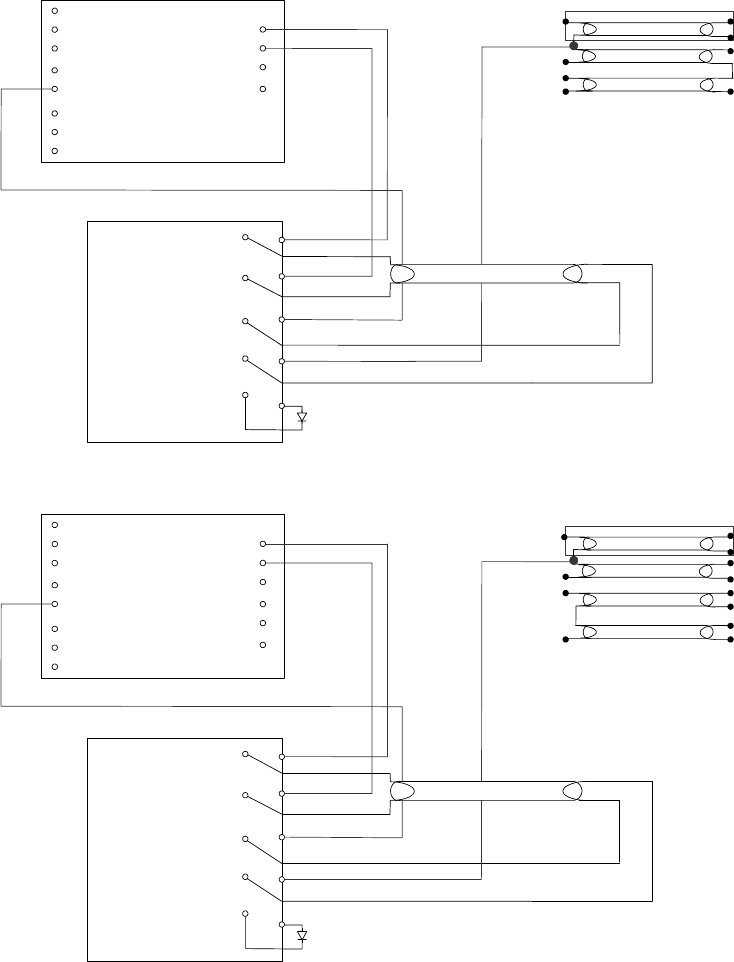

6.5.2.3 Wiring diagram
QT-FH 3x14 CW with
emergency lighting
component from
OMNITRONIX
6.5.2.4 Wiring diagram
QT-FH 4x14 CW with
emergency lighting
component from
OMNITRONIX
6.6 DC supply
Luminaires for emergency lighting are switched to battery supply only in the
event of a power failure. In mains operation, the luminaires are powered by
the normal supply. The mains and emergency lighting switchover
arrangement must reliably separate mains operation from emergency
lighting operation; it must be a break-before-make arrangement.
A deep discharge protection system must be provided for battery systems.
This effectively prevents the batteries discharging too much and suffering
QT-FH 4x14 CW
N
3
7
8
4
6
5
9
2
1
10
L
OMNITRONIX
connected via MCME
3
7
4
8
1
6
10
2
5
9
QT-FH 3x14 CW
N
3
7
8
4
6
5
2
1
L
OMNITRONIX
connected via MCME
3
7
4
1
6
2
5
8
