Instruction manual

3. ECG installed in Luminaire:

Installations and Operation

Instructions

3.1 Wiring Instructions

3.1.1 Cable Types

Please pay attention to the voltage value U-OUT imprinted on the ECG

housing when wiring luminaires for FH

…HE or FQ

…HO fluorescent

lamps. This value indicates the possible cable type.

For voltages greater than 430V cables with the classification H07 have to

be used.

U-OUT is the maximum voltage that can occur between the lamp terminals

or the lamp terminal and the earth connector.

For all OSRAM QUICKTRONIC ECG for operation of T5/∅ 16 mm-

fluorescent lamps FH

…HE and FQ

…HO U-OUT is less than 430V

allowing luminaires to be wired with cables H05.

Cable types are specified through the terminals in use.

3.1.2 Cable Cross-Sections

The cable cross-sections are marked on the identification plate of the

Electronic control gear.

ombi-Wiring (CW) stands for use in automatic or manual wiring. ECG in

30 mm height have the annex CW at the end of the type. ECG types

without CW are suitable for manual wiring only in this height. T5-ECG in

21 mm height don’t have this annex as they are equipped with CW

terminals only for manual or automatic wiring.

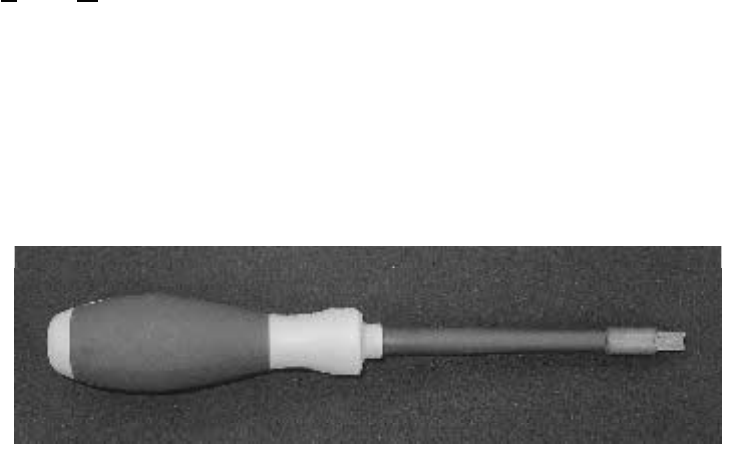

For manual wiring of the IDC a special tool is available for example from

WAGO. This tool is listed and can be ordered from WAGO under the order

number

0206-0831.

Ancillary for manual wiring of the IDC-contact of the CW terminals
