Table 33: The Description of Label Information
No. Description
A LOGO
B No.1 Pin
C Project Name
D Part Number
E Serial Number (SN)
F International Mobile Equipment Identity (IMEI)
G FCC ID
H QR code
6.3 Typical SMT Reflow Profile
SIMCom provides a typical soldering profile. Therefore the soldering profile shown below is only
a generic recommendation and should be adjusted to the specific application and manufacturing
constraints.

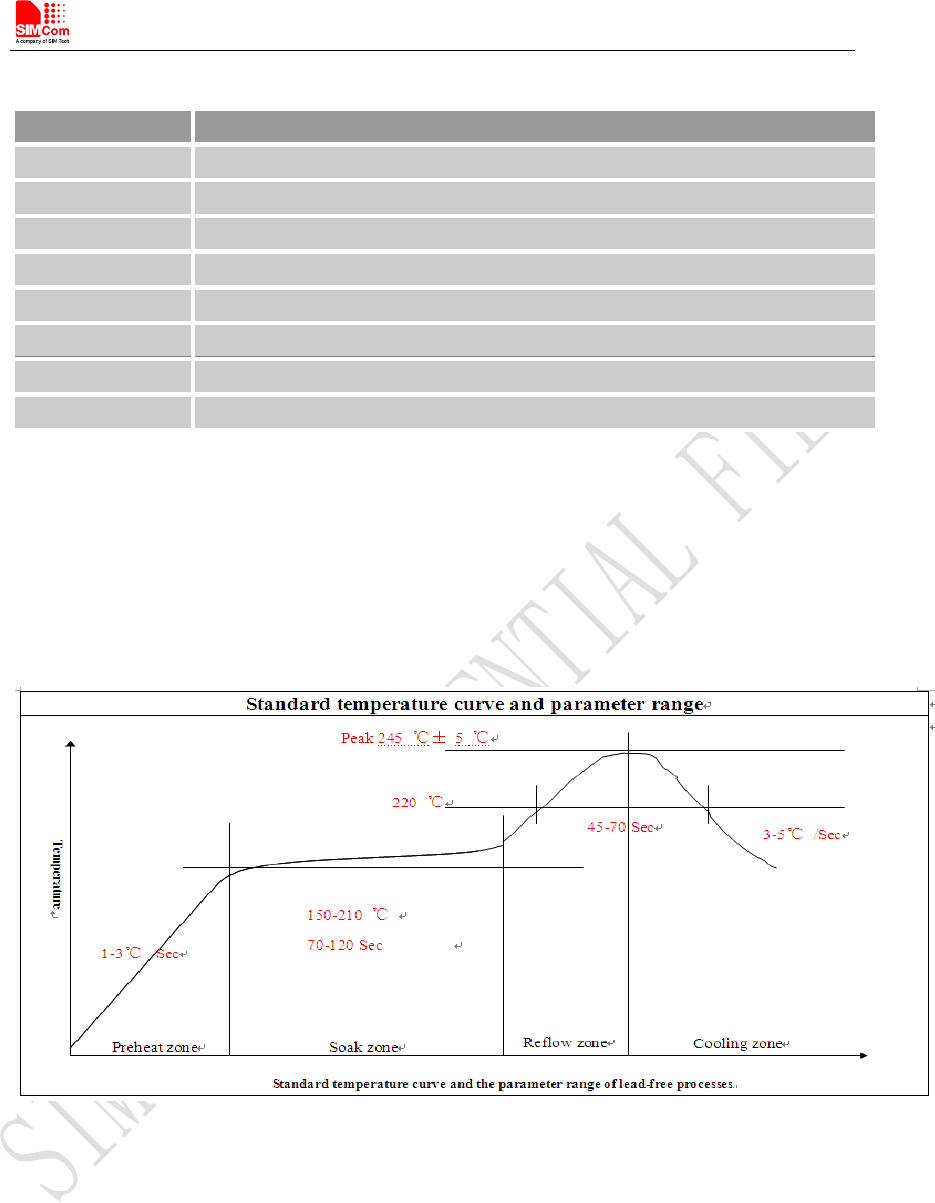

Figure 31: The ramp-soak-spike Reflow Profile of Module
Note: For more details about secondary SMT, please refer to the document [21].
6.4 Moisture Sensitivity Level (MSL)
Module is qualified to Moisture Sensitivity Level (MSL) 3 in accordance with JEDEC J-STD-033.
If the prescribed time limit is exceeded, users should bake modules for 192 hours in drying
equipment (<5% RH) at 40+5/-0°C, or 72 hours at 85+5/-5°C. Note that plastic tray is not
heat-resistant, and only can be baked at 45° C.
