Installation: Installing a hinged gate (continued)
7. You can place the hinges on either the left or right. Insert the two gate trusses with the tall
top plate on the latch side.
127(2QDIRRWWDOOJDWHWKHODWFKPXVWEHDWWKHORZHVWSRLQWWKHPRXQWLQJEUDFNHWRQWKH
WUXVVHVDOORZV
8. Attach your hinges and latch to the flat metal supports welded to the gate trusses. The gate
should swing out away from the enclosed pool area (if you are standing outside your fenced
area it should swing toward you).
9. Follow the directions provided with your Magna Latch kit for attaching and adjusting your
hinges and latch
10. If extra support is needed (recommended) there are two holes in the base flanges of the
trusses. (note: the base flanges are supposed to only be welded on one side) Using 1/4” x 2
1/4” concrete wedge anchors purchased from a hardware store, use those holes to bolt the
trusses to the pool deck. Drill holes for anchors using bit size recommended on anchor
package.

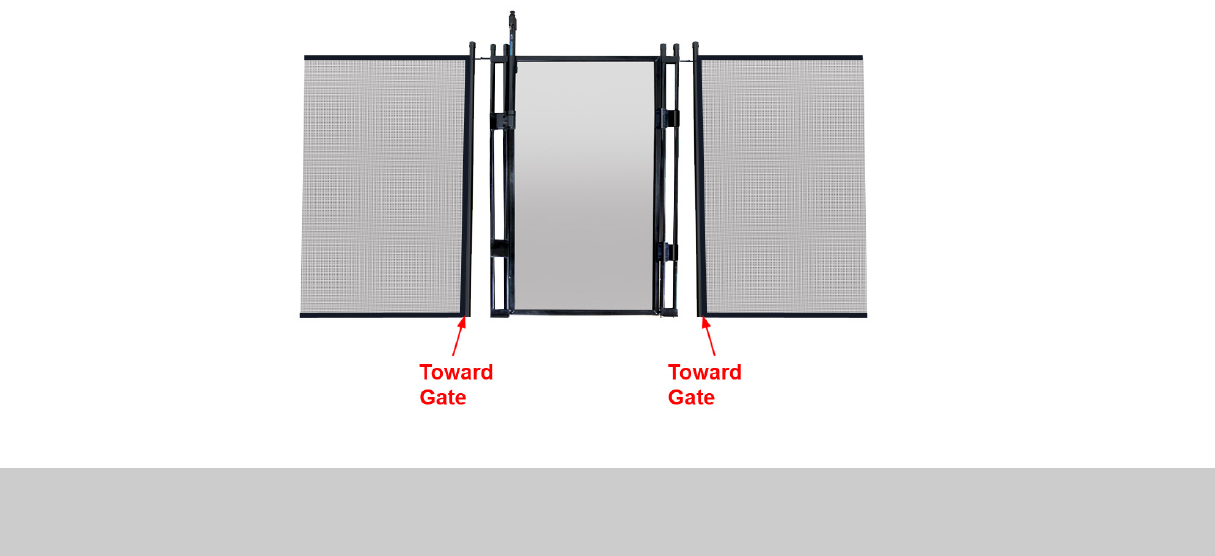

11. Angle the end poles of the adjacent fence sections toward the gate using the mid circle point
on your drill guide (used previously for slight turns) towards the gate.
12. Using a 1/16 bit drill a hole in the outside pole of the frame to hook your hook & eyes to the
adjacent fence posts. This is just a pilot hole, the hook and eye are designed to be self tap-
ping. Attach the poles to the gate trusses using the hook and eyes.
5
Degrees
