User's Manual

Socket Wiring Form 17S
Version 1.0 Socket Wiring A-3
Form 17S
Figure A-6 shows the socket wiring for a three-element, self-contained, three-phase, four-wire
socket for Delta service connections.

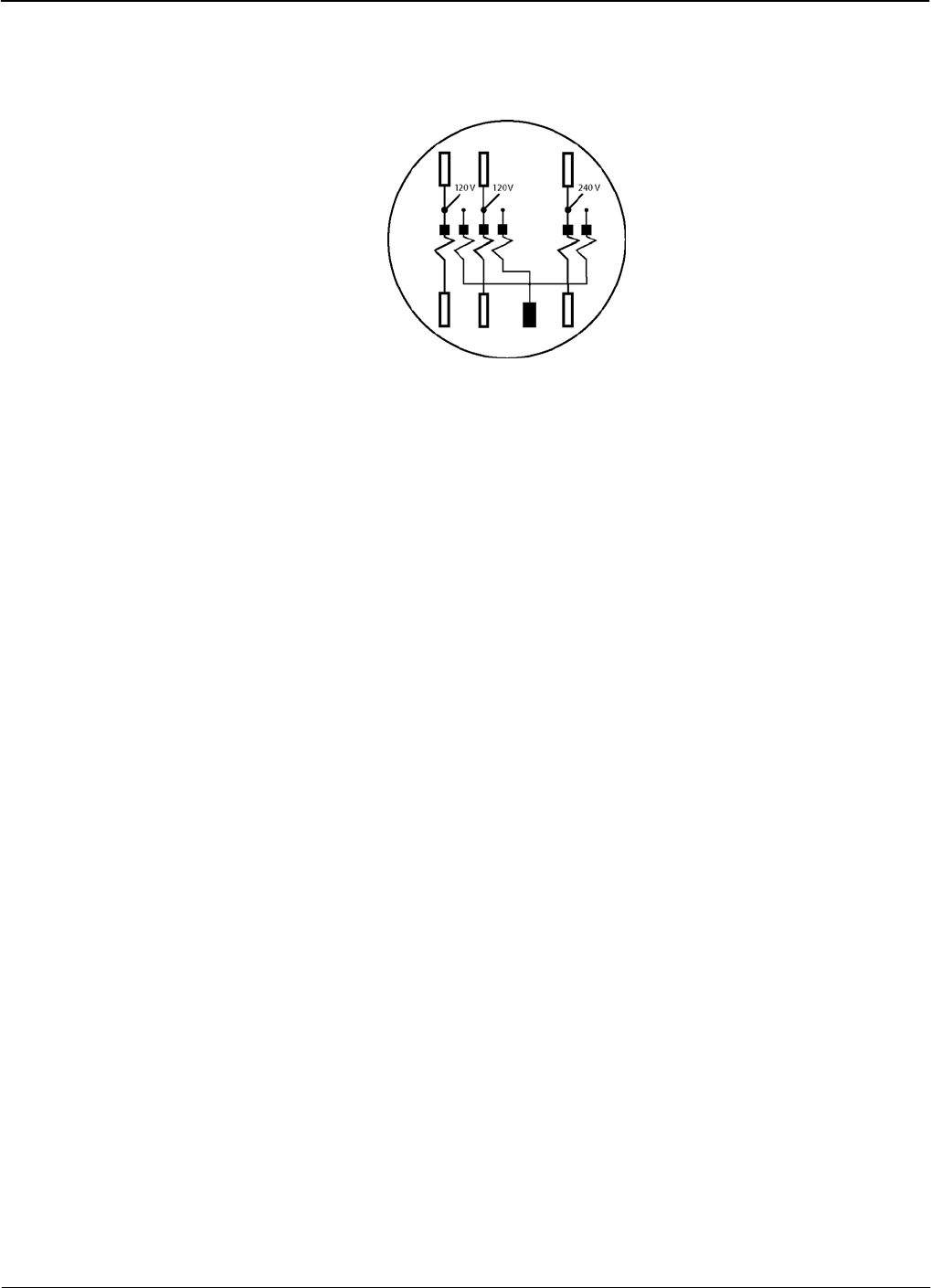

Figure A-6: Socket Wiring - Form 17S
